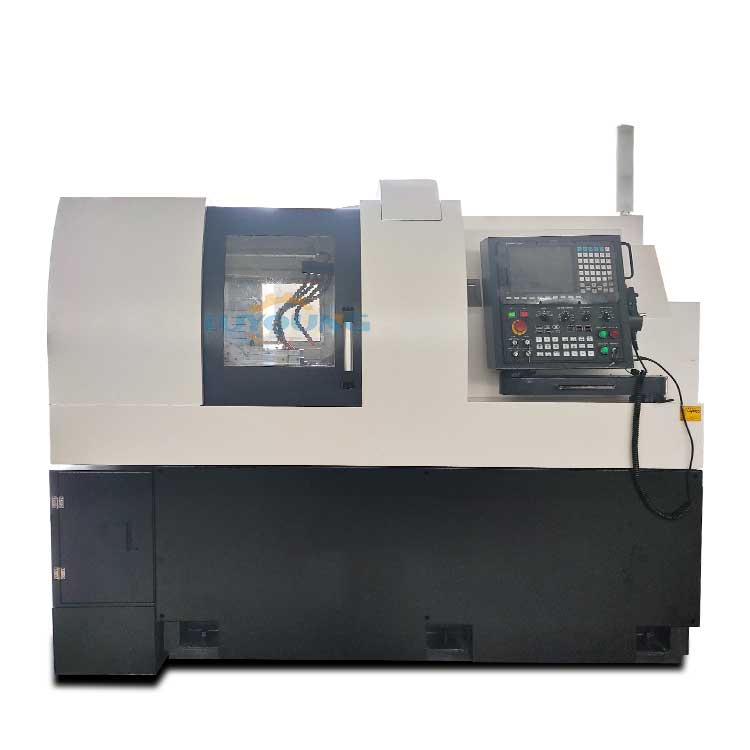

What advantages have Swiss - type CNC lathe machines in micro - turning?

Unmatched Precision and Tight Tolerances for Micro-Scale Components

Micrometer-level accuracy in machining small, complex parts

Swiss type CNC lathes can hit positional accuracy down to about 1 micron, which matters a lot for things like medical implants and those tiny aerospace sensors where geometry has to be spot on. How do they pull this off? Well, these machines use closed loop feedback systems that check tool position around 2,000 times every second. They also have these hydrostatic guide bushings that basically wipe out any radial play. According to research published in the International Journal of Advanced Manufacturing Technology back in 2024, Swiss lathes cut down dimensional errors by roughly 92% versus regular lathes when making those super small microfluidic chips measuring under 5mm.

Consistent repeatability in high-volume micro-part production

Components such as dental screw abutments benefit from a consistent kinematic design that delivers around 99.8 percent repeatability over thousands of production runs. The system incorporates dual axis encoders along with adaptive torque controls to keep the spindle running smoothly even when spinning at speeds approaching 15,000 RPM. This precision means that tiny threaded features measuring about plus or minus 2 micrometers on catheter tips get replicated consistently throughout manufacturing batches. Industry reports indicate significant improvements too many companies have seen their need for post machining inspections drop by roughly 40%. Orthopedic device makers back these claims with their own batch conformity records showing similar results across multiple production lines.

Minimized thermal expansion effects enhance dimensional stability

The combination of granite composite machine frames along with active coolant temp control within +/- 0.5 degrees Celsius keeps thermal drift under 0.3 microns per hour even during long production runs. For titanium spinal fixation rod manufacturing, this kind of stability makes all the difference. Traditional lathes typically show around 8 microns of thermal distortion after just an 8 hour workday according to recent industry studies from ASME in 2023. Swiss type machines maintain almost constant temperatures throughout operation which helps keep those critical bore measurements within 1.5 microns tolerance despite running for hours on end without interruption.

Superior Rigidity and Vibration Control Through Guide Bushing Design

Reduced Tool Deflection With Close-to-Tool Cutting Support

Swiss type CNC lathes get their remarkable stiffness from this built in guide bushing setup that puts support right there within half a millimeter of where the actual cutting happens. What this close proximity does is cut down on tool bending by about two thirds when working with tiny titanium parts, according to findings published in the Machining Dynamics Report last year. Pretty impressive stuff really. And it gets better because these machines keep the cutting pressure steady even when making super thin cuts under fifty microns deep something absolutely essential for those tight plus or minus two micrometer specs required in making medical implants.

Enhanced Stability During High-Speed Micro-Turning Operations

When it comes to high speed operations, the guide bushing's tapered surface offers complete radial support all around during those intense spindle rotations above 12,000 RPM. What does this mean for actual machining? Well, it stops those annoying harmonic vibrations that ruin surface finishes. The result? Clean, burr free machining even on tiny 0.3 mm aluminum capillaries while maintaining feed rates as high as 0.02 mm per revolution. Some recent testing back in 2024 found something pretty impressive too. Components made using lathes fitted with these special guide bushings had about 38% better dimensional consistency compared to regular machines. For watchmakers dealing with microscopic tolerances, this kind of improvement makes all the difference in quality control.

Effective Vibration Damping for Cleaner Cuts and Longer Tool Life

The bushing system absorbs around 85 percent of those pesky high frequency vibrations before they even get to the cutting tool, which means carbide micro tools last about three to four times longer during continuous production runs. When we look at the damping effect specifically, tests show there's roughly a 0.8 micrometer reduction in peak to valley amplitude for copper nickel alloys. What does this actually mean? It gets rid of those tiny chatter marks that would otherwise ruin the seal surfaces on hydraulic micro valves. And because of this improved stability, Swiss type machines can hold onto their Ra 0.2 micrometer surface finish standards all through an entire eight hour shift without anyone needing to jump in and tweak things manually.

Multi-Axis Integration for Complex Geometry in a Single Setup

Swiss-type CNC lathe machines excel in micro-turning operations through multi-axis integration, combining turning, milling, drilling, and threading in a single clamping cycle. This eliminates manual repositioning, reducing setup time by up to 70% compared to traditional 3-axis methods.

Simultaneous Turning, Milling, Drilling, and Threading Capabilities

Synchronized motion across 4–7 axes enables machining of intricate features such as helical coolant channels (Ø0.3–1.2 mm) and micro-threaded ports (

Production of Intricate Micro-Parts Without Intermediate Handling

By maintaining part orientation throughout the machining cycle, these systems achieve 98.7% first-pass yield rates (Journal of Precision Engineering, 2023) for complex geometries like fuel injection nozzles and watch escapements. Eliminating secondary fixturing reduces handling-induced errors by 82% while cutting total production time by 35–50%.

Case Study: Efficient Manufacturing of Medical Micro-Components

A recent project involving micro-surgical instruments demonstrated Swiss-type lathes’ capabilities:

The system produced micro-scale surgical tool components with

Exceptional Surface Finish Quality at Microscopic Scales

Achieving smooth surface finishes critical for precision applications

The Swiss type CNC lathes can achieve surface roughness down to around Ra 0.4 microns for things like medical implants and aerospace sensors where tiny flaws really matter. These machines have these rigid guide bushings that keep the cutting tools stable when doing those super fine turns, and they come equipped with spindles capable of sub micron resolution which helps maintain that smooth finish throughout production runs. According to some research from SME back in 2024, there's this magnetic abrasive finishing technique that cuts down on the time needed for polishing after machining by about 40 percent without compromising the surface quality below Ra 0.5 microns across thousands of small components.

Advanced tool path control ensures uniformity and minimal burring

The machines work with adaptive tool paths that change cutting angles as they go, which stops problems like gouging and edge deformation when working on tiny features less than 1 mm thick. When making those micro-fluidic channels for lab-on-chip devices, the result is really small burrs measuring under 2 microns high something absolutely necessary if the fluid is going to flow properly without getting blocked. The system adjusts RPMs dynamically while finishing off parts, creating surfaces so smooth they look almost like mirrors with roughness values at or below 0.2 microns Ra. This means no extra polishing steps are needed after machining. Another benefit comes from coolant that runs through the tools themselves, helping prevent heat damage to delicate materials such as titanium and nickel based alloys that can warp easily when exposed to excessive temperatures during processing.

High-Speed, High-Efficiency Production in Precision-Critical Industries

The Swiss type CNC lathe has really changed how fast manufacturing works in industries where getting things right down to the microns matters a lot for product performance. These machines cut down on cycle times by around 15 to maybe even 30 percent when making aerospace parts like those tiny fuel injectors and housing units for sensors, all while keeping tolerances under 3 micrometers tight. A study from He and colleagues back in 2023 confirmed this. What makes them special? Well, their unique guide bushing setup combined with tools that move in sync breaks the old rule that says faster means less accurate. This lets factories keep churning out those critical parts without stopping, something that's become essential in today's demanding markets where every fraction of a micron counts.

Rapid Cycle Times for Aerospace Micro-Components Without Quality Trade-Offs

Equipped with 20,000 RPM spindles and real-time thermal compensation, these machines process titanium alloys at feed rates exceeding 8 m/min while sustaining Ra 0.4 µm surface finishes. This reduces typical micro-turning cycles from 45 minutes to under 32 minutes per part in high-volume runs.

Scalable Batch Production for Medical Device and Semiconductor Sectors

The Swiss type lathe makes moving things from prototype stage all the way through to mass production much easier when working inside those cleanrooms everyone talks about these days. These machines come equipped with automated bar feeders plus dual turret setups which let them run nonstop for around three whole days straight on stuff like catheter guidewires. The results? Facilities certified under ISO 13485 standards report getting almost 99% success rate on their first try without needing rework. And interestingly enough, exactly the same kind of equipment proves really useful in semiconductor factories too. When it comes time to manufacture those tiny wafer handling pins, manufacturers can crank monthly production up from just 500 pieces right up to 15 thousand per month simply by adjusting settings rather than expanding factory floorspace.

FAQ

What is the precision level of Swiss type CNC lathes?

Swiss type CNC lathes can achieve positional accuracy down to about 1 micron, which is essential for high precision components such as medical implants and aerospace sensors.

How do Swiss type CNC lathes maintain repeatability in production?

They utilize consistent kinematic designs, dual axis encoders, and adaptive torque controls to ensure repeatability up to 99.8% across production batches.

What role does thermal expansion play in CNC lathe machining?

Thermal expansion affects dimensional stability. Swiss type machines use granite composite frames and coolant temperature controls to minimize thermal drift.

What benefits do guide bushings provide in these machines?

Guide bushings offer superior rigidity and vibration control, reducing tool deflection and improving dimensional consistency during machining.

How do these machines handle complex geometries?

Swiss type CNC lathes use multi-axis integration for simultaneous turning, milling, drilling, and threading, which significantly reduces setup time and handling errors.

In what industries are Swiss type CNC lathes primarily used?

They are primarily used in precision-critical industries such as aerospace, medical devices, and semiconductor manufacturing due to their high-speed and high-efficiency capabilities.
