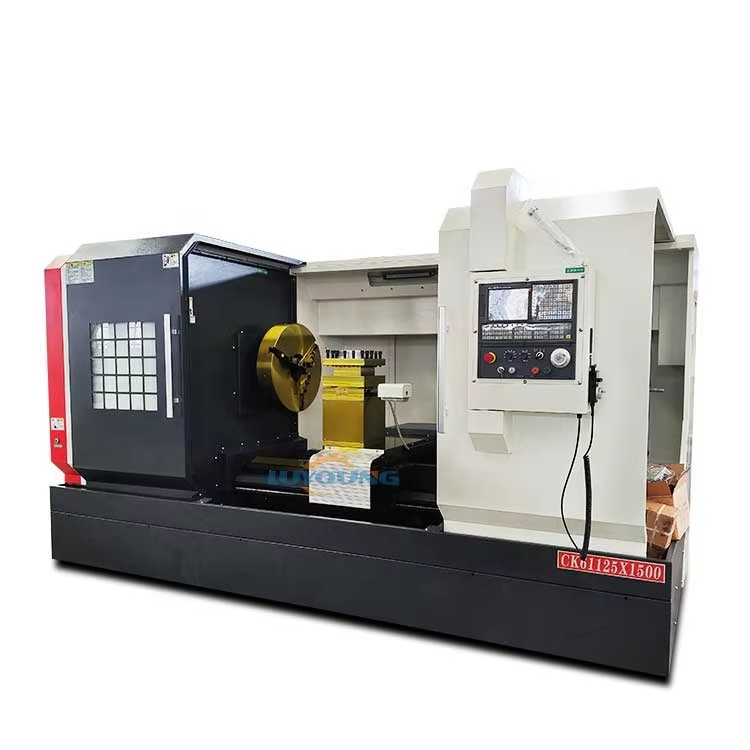

What parameters matter for choosing cnc pipe threading lathe?

Core Technical Specifications of CNC Pipe Threading Lathe Machines

Swing Over Bed and Maximum Machining Length

Swing over bed measurements basically tell us what size pipes a CNC threading machine can handle. Most industrial grade units work with diameters between 12 inches and 24 inches, though specifics depend on the manufacturer. When talking about machining length, these machines often go beyond 10 feet, which makes them suitable for those really long pipes needed in oil fields, gas pipelines, and big construction projects. For longer cuts where vibration becomes an issue, many modern setups come with adjustable steady rests or tailstocks. These components help keep everything stable so the finished product stays accurate even when working on full length sections that might otherwise warp or bend during processing.

Machining Diameter Range and Workpiece Compatibility

CNC pipe threading lathes handle diameters from 0.5" to 12", with heavy-duty models supporting up to 16". Workpiece compatibility depends on material density and chuck gripping force. For high-pressure threaded connections, machines must maintain ±0.001" tolerance across all diameters, ensuring leak-free seals and regulatory compliance.

Spindle Speed (RPM) and Its Effect on Threading Efficiency

The spindle speed range of around 100 to 3,000 RPM gives machinists flexibility depending on what they're working with and the kind of threads needed. When dealing with softer stuff like PVC, cranking up those RPMs makes sense because it cuts through material much quicker. But try that same approach on stainless steel and things get messy fast. Most operators stick to the lower end of the spectrum, somewhere between 100 and 800 RPM, which keeps vibrations at bay during cutting operations. These days, many modern CNC machines come equipped with smart features that tweak spindle speeds on their own based on sensor data from tools wearing down or changes in thread pitch as work progresses. While not foolproof, this automatic adjustment definitely improves results over time and saves some serious headaches when running multiple parts through the machine.

Feed Rate, Feed per Revolution, and Thread Pitch Matching

Getting the right balance between feed rate (IPM) and feed per revolution (IPR) is key to making good thread profiles. Take an 11.5 TPI NPT thread for instance. If we set the feed around 0.087 IPR, that helps prevent those annoying pitch errors that can ruin a whole batch. Modern CNC machines have gotten pretty smart about this stuff. They use some fancy math behind the scenes to adjust feeding rates on the fly, particularly important when working with those tricky tapered threads. What this means in practice is that dimensions stay consistent from start to finish of the cutting process, which saves time and materials in production shops.

Surface Feet per Minute (SFM) and Cutting Speed Optimization

Optimal SFM varies by material: 300–400 SFM for carbon steel and 150–200 SFM for titanium alloys. Smart CNC lathes monitor tool temperature and adjust SFM in real time, increasing cutting speeds by 18–22% during roughing while preserving safe limits for finishing passes. This adaptive control extends tool life and maintains surface integrity.

Threading Capabilities and CNC-Controlled Precision Cutting Technology

Range of Thread Types and Sizes Supported by CNC Pipe Threading Lathes

Today's CNC pipe threading machines work with all the big standards out there like NPT (that's National Pipe Taper), BSPT (British Standard Pipe Taper), plus metric threads too. They can handle everything from half inch pipes right up to those massive 24 inch ones. The tooling setup takes care of both coarse and fine thread pitches, so it meets those important specs from ASME B1.20.1 as well as ISO 7-1 requirements. What really matters though is how this versatility cuts down on extra steps when running productions with multiple pipe sizes. Shops save time and money because they don't have to switch tools as often during complex jobs, making the whole manufacturing process run smoother day after day.

CNC Thread Cutting Technology for Accurate and Repeatable Results

With CNC automation, precision comes from controlling tool paths, how deep the cuts go, and those fancy helical movements. The system has these closed loop feedback mechanisms that constantly watch what's happening during cutting operations. They can actually hit pitch diameter tolerances down to plus or minus 0.0005 inches according to ANSI standards. Pretty impressive stuff when working with tough materials such as stainless steel. Traditional machining approaches just can't keep up because they tend to have problems with tools bending under pressure. Shops that make parts for medical devices or aerospace applications really depend on this kind of accuracy day in and day out.

Process Parameters for Consistent Thread Quality

Consistent thread quality depends on three key parameters:

• Cutting Speed: Adjusted for material hardness (e.g., 80–120 SFM for carbon steel, 40–60 SFM for titanium)
• Feed Rate: Synchronized with spindle rotation to maintain correct thread pitch
• Chip Load: Managed via variable helix tooling to prevent surface marring

CNC systems automatically compensate for tool wear, incrementally adjusting these variables across long production batches to sustain quality.

Adaptability to Different Pipe Diameters and Materials

Advanced CNC lathes feature modular tool holders and programmable speed-torque curves to process materials from soft copper (BHN 45) to hardened steel (HRC 38). For mixed-material environments, operators can quickly switch optimized cutting profiles:

Combined with automatic tool recognition, this adaptability enables single-machine processing of diverse pipe inventories without reconfiguration delays.

Precision, Stability, and Vibration Control in Long-Part Machining

Precision and stability are critical for high-quality threading, especially with long workpieces. Three key factors ensure consistent performance over extended machining cycles.

Achieving High Accuracy and Repeatability in Thread Production

Servo-driven axis controls and thermally stabilized ball screws enable ±0.005 mm positional accuracy. This reduces cumulative pitch errors by 83% in threads over 3 meters compared to manual machines (International Journal of Advanced Manufacturing, 2023). Real-time toolpath compensation maintains ISO 7/7h thread tolerances even after 500+ cycles, ensuring long-term repeatability.

Chatter Prevention and Rigidity During Extended Cuts

Lathes with 35–50 kN/mm static rigidity at the spindle nose resist harmonic vibrations in high L/D ratio (10:1) pipes. A 2024 industry study showed that bed design directly affects vibration and thread deviation:

Optimized mass distribution and preloaded linear guides suppress resonance frequencies below 120 Hz, keeping operations within safe thresholds.

Advanced Damping Systems for Vibration Suppression

Modern active damping systems combine accelerometers with hydraulic counter vibration pistons to knock out around 92 percent of those annoying vibrations across frequencies from half a hertz all the way up to 200 Hz. When working with carbon steel pipes larger than two inches in diameter, these systems typically extend tool life by roughly 40%, while maintaining that critical Ra 3.2 micrometer surface finish requirement. The real magic happens with phase controlled spindle braking technology which responds in under ten milliseconds, basically wiping out any leftover oscillations after making thread relief cuts. This means cleaner edges and better overall quality without all the post machining cleanup headaches that used to plague shop floors.

Material Compatibility and Required Spindle Power

Processing Steel, Stainless Steel, and High-Strength Alloys

Modern CNC pipe threading machines handle everything from basic carbon steel right up to tough high-strength alloys such as Inconel®. When working with carbon steel, operators usually set cutting speeds between about 80 and 150 meters per minute along with moderate feed rates. Stainless steel presents different challenges though, needing roughly 15 to 20 percent extra torque because it tends to work harden during machining according to recent industry data from 2024. Titanium alloys behave quite differently again, performing optimally at much slower speeds ranging from 60 to 120 m/min, although they consume anywhere between 22 and 30 percent more spindle power compared to regular steel grades. Take 316L stainless steel for example—it actually needs around a quarter more axial force when threading compared to mild steel just to keep things from deflecting and maintain consistent thread quality throughout the operation.

Spindle Torque and Power Needs for Heavy-Duty Threading

When working with pipes larger than 6 inches made from stainless steel or other alloy materials, most lathes need spindles rated between 15 and 25 horsepower. They should also have at least 180 Newton meters of torque when operating within the 400 to 800 revolutions per minute range. A recent report from NIST in 2023 looked into this topic closely. It found that cutting threads on 3 inch diameter 304 stainless steel at speeds around 110 surface feet per minute actually needs about 22 horsepower. That's almost twice what would be required for aluminum pipes of exactly the same size, which only need approximately 12 horsepower. Not having enough power can really shorten tool life too. Studies show tools wear out up to 40 percent faster when machining tough materials like these (SME, 2023). This makes variable torque spindles absolutely necessary for many operations. The good news is these specialized spindles can produce roughly three times more torque at 500 RPM compared to standard fixed ratio models, which helps maintain consistent performance even when working with challenging alloys.

This balance of technical capability and operational efficiency ensures your CNC pipe threading lathe meets demanding material requirements while maximizing productivity.

Automation, Productivity, and Return on Investment

Cycle Time Reduction Through CNC Automation Features

Integrated automation—including automatic tool changers and pre-programmed threading cycles—reduces cycle times by 40–60% versus manual methods (Deloitte 2025). Servo-driven axis control enables complex threading sequences to be completed in under 90 seconds, eliminating delays from manual adjustments and measurement errors.

Efficiency Gains in High-Volume Production Environments

In facilities producing 5,000+ threaded pipes monthly, CNC automation delivers consistent throughput by minimizing setup variability. Automated lubrication and predictive maintenance reduce unplanned downtime, supporting 70–80% overall equipment effectiveness (OEE) in multi-shift operations (Manufacturing Institute 2024).

Evaluating Total Cost of Ownership and Long-Term ROI

For a $350k CNC threading lathe, ROI is calculated as:
ROI (%) = [(Annual Savings − Operational Costs) / Initial Investment] × 100
Over a 3–5-year horizon, benefits such as faster order fulfillment and compliance with API/ASME standards further justify the investment, turning precision equipment into a strategic asset.
