AK164 Chinese 4 Axis Dental Bone Screw Swiss Lathe Machine Promotional CNC Medical Treatment Lathe
Description

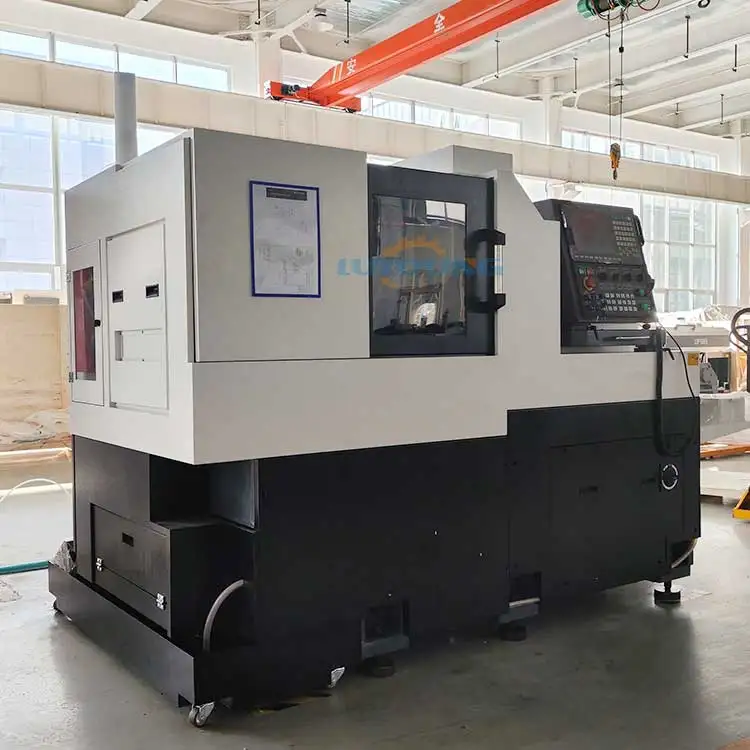

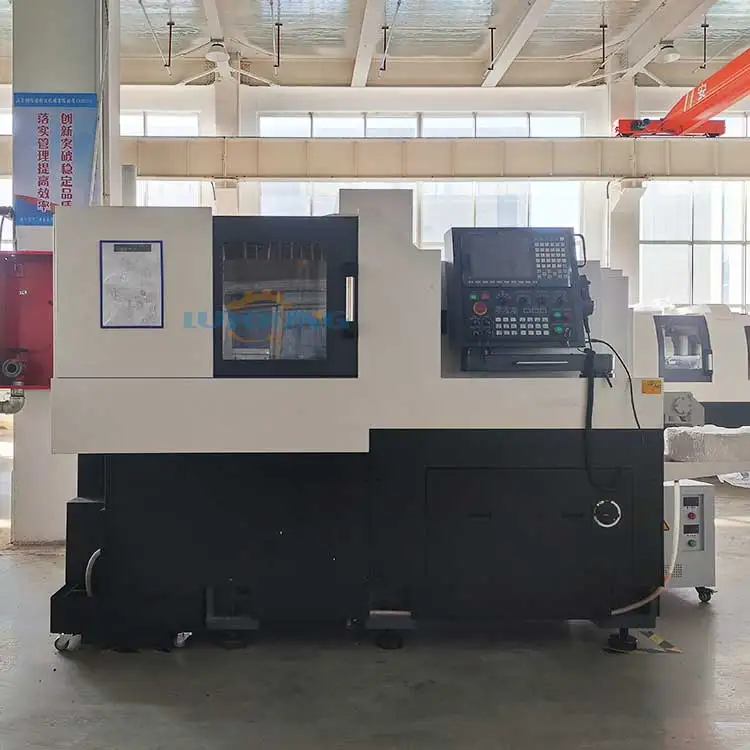

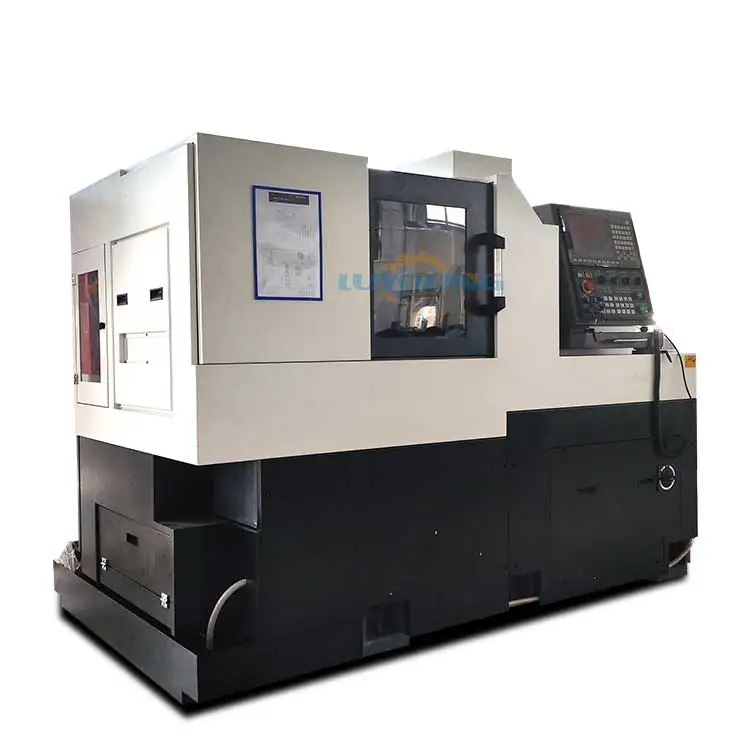

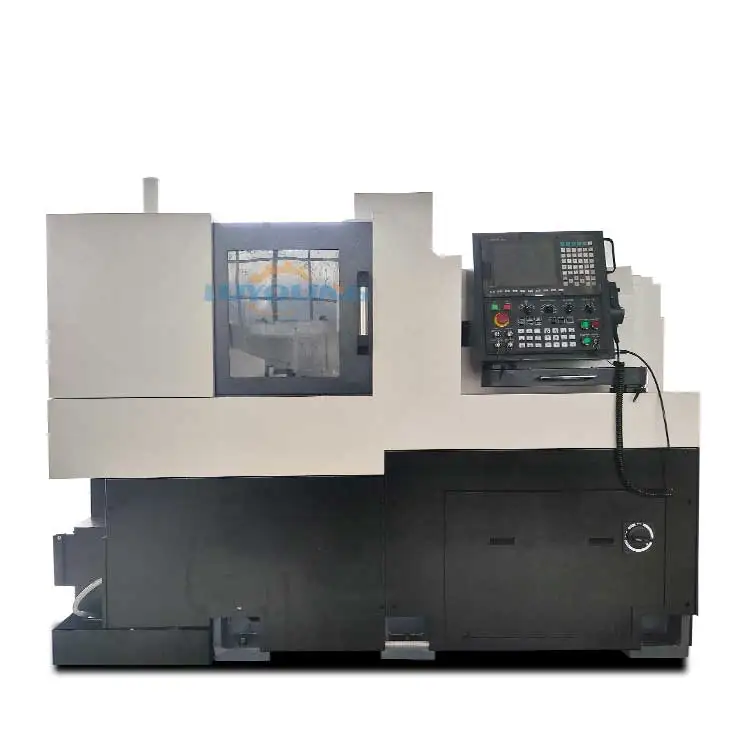

AK164 Chinese 4 Axis Dental Bone Screw Swiss Lathe Machine Promotional CNC Medical Treatment Lathe
Specification
describe |
unit |
specifications |
||||||
Processing capacity |
Max maching diameter |
mm |
16 |
|||||
Stroke |
mm |
150 |
||||||
Main Spindle RPM |
rpm |
8000 |
||||||
Sub Spindle RPM |
rpm |
8000 |
||||||
Cross Driven Tools RPM |
rpm |
6000 |
||||||
Cs Additional Positive Brake |
1/1000(0.001) |
|||||||
Rapid Traverse Rate |
X1 axis |
m/min |
24 |
|||||
Y/Z1/Z2 axis |
m/min |
24 |
||||||
Arrangement of tools |
O.D Tools |
ea |
6 |
|||||
Front Work Tools |
ea |
3 |
||||||
Cross Driven Tools |
ea |
3 |
||||||
O.D Tools specification |
mm |
12×12 |
||||||
Front Work Tools diameter |
mm |
25 |
||||||
Power Tool Chuck Specifications |
mm |
E6 |
||||||
Spindle motor |
kw |
3.7/5.5 |
||||||
Motors |
Sub Spindle motor |
kw |
0.55/1.1 |
|||||
Servo axis motor |
kw |
0.75 |
||||||
Cross Driven Tools motor |
kw |
0.55 |
||||||
Lubrication pump motor |
w |
5 |
||||||
Coolant motor |
kw |
0.25 |
||||||
Others |
Coolant tank capacity |
L |
180 |
|||||
Lubrication tank capacity |
L |
1.8 |
||||||
Height from floor tospindle center |
mm |
1050 |
||||||
(L) |
mm |
1950 |
||||||
Floor space |
(W) |
mm |
1334 |
|||||
(H) |
mm |
1680 |
||||||
Mass of machine |
kg |
3000 |
||||||
CNC control unit |
FANUC 0i- TD |
|||||||
1 |
CNC controller: Taiwan Syntec Controller system |
2 |
Automatic lubrication system |
3 |
Water pump cooling system |
4 |
Full Protection Frame |
5 |
Cross living tools,4live tools |
6 |
Z axis direction Fixed cutter holder,4 drilling tools holder(ER16) |
7 |
P4 classes Precision screw guide:Japan THK brand(X,Y,Z) |
8 |
Electric spindle |
9 |
Bearing:Japan NSK |
10 |
C axis Stepless indexing |
11 |
X1,Y1,Z1,Z2 ,X2 aixs servo motor: Japan YASGAWA |
12 |
Driving---Japan YASGAWA |
13 |

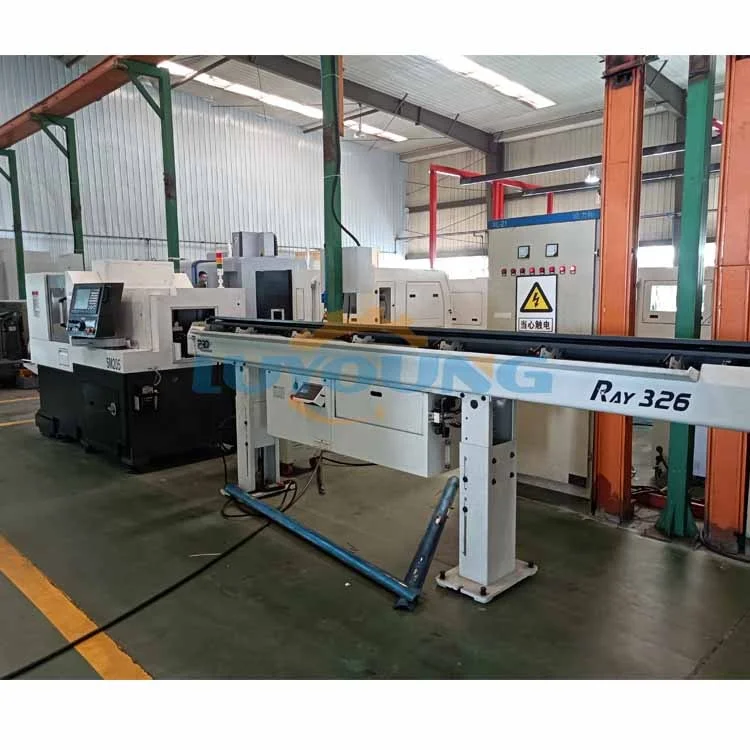

Long workpieces feed tube |
Product Description
AK164 Chinese 4 Axis Dental Bone Screw Swiss Lathe Machine Promotional CNC Medical Treatment LatheSwiss lathe machinable stainless steel, titanium alloy, brass, aluminum alloy, platinum and iridium alloy. It is suitable for high-processing of complex parts such as aviation, aerospace, automobile, motorcycle,communication, refrigeration, optics, home appliances, electronics, watches, toys, medical and other industries.
Product Feature

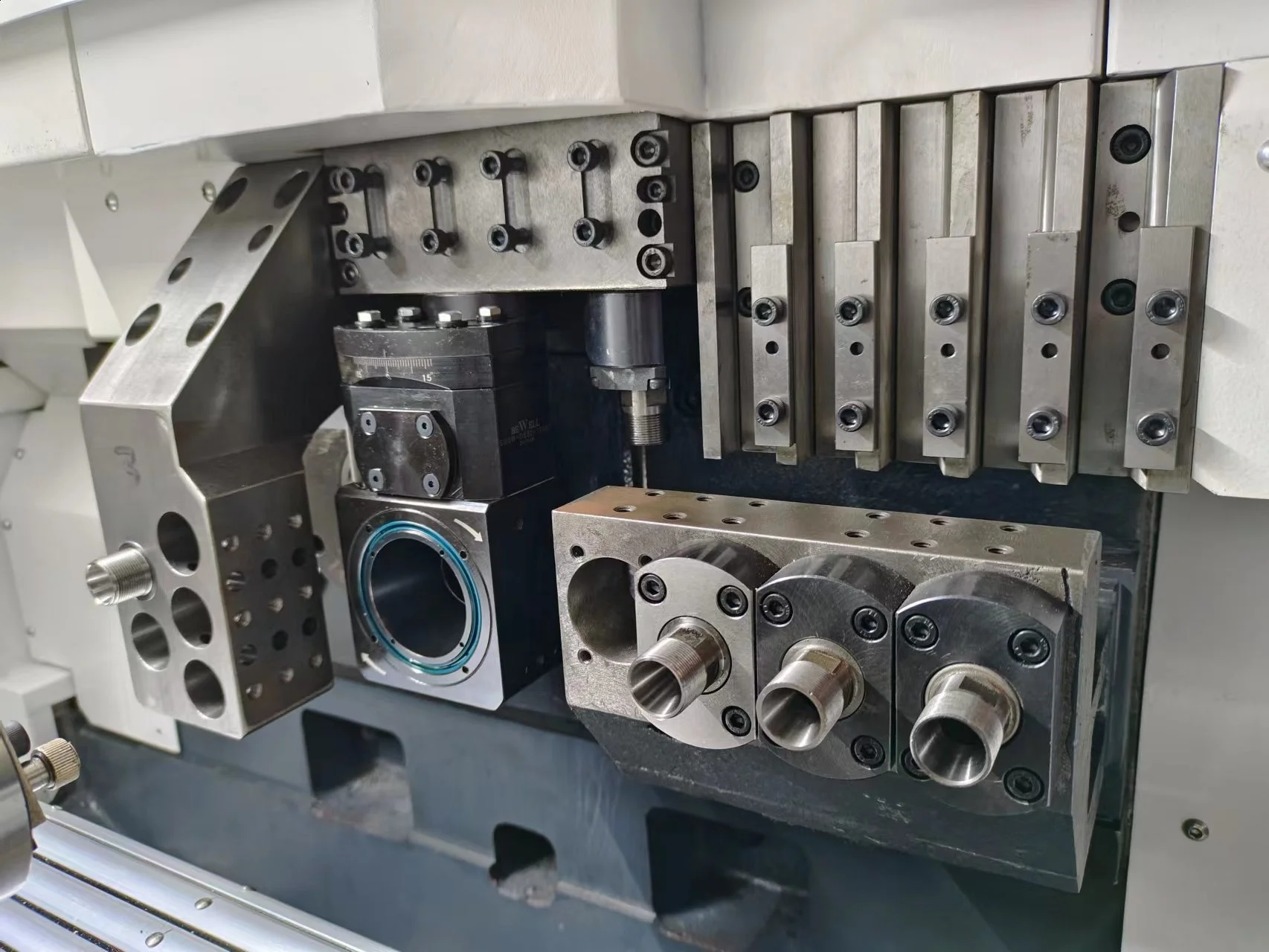

1. AK164 Chinese 4 Axis Dental Bone Screw Swiss Lathe Machine Promotional CNC Medical Treatment Lathe Arrangement of tooling:13 fixed tools and 9 live tools among 22 tools can handle complex processing.
2.Fanuc system: Stability self diagnostician(chucking,ejector, oil cooling,cut, tool breakdown).
3.Front end tool:5 fixed tools in front end tool, 4 live tools in cross drill,6 fixed tools in bite tool.
4.Back-end fixed tool:1 fixed tool and 3 live tools.
5. AK164 Company high precision Toggle system: Lt is possible to maintain continuous process without toggle’s damage.
6.Swiss type machine Off-center tool:1 fixed tool and 2 live tools,finished parts by our machine tools
2.Fanuc system: Stability self diagnostician(chucking,ejector, oil cooling,cut, tool breakdown).
3.Front end tool:5 fixed tools in front end tool, 4 live tools in cross drill,6 fixed tools in bite tool.
4.Back-end fixed tool:1 fixed tool and 3 live tools.
5. AK164 Company high precision Toggle system: Lt is possible to maintain continuous process without toggle’s damage.
6.Swiss type machine Off-center tool:1 fixed tool and 2 live tools,finished parts by our machine tools
Company Profile
Shandong Lu Young Machinery Co, Ltd. is established in July 1996.We are located in shandong provice.We are one of professional cnc lathe machine, cnc milling machine and swiss lathe machine manufacturer in china.We founded our fast lathe machine factory in 1996 in tengzhou City to produce center lathe and univesal milling machine for over 20 years development,we build three factories.One is for cnc lathe production one for cnc milling production. We imported advanced production technology and R&D team from Korean in 2001 and build our third factory for swiss lathe machine production.
We own about 500 wokers and 40 engineers, more than 5000 square meter .Our engineer team have rich experiences for equipment selection and process design, we can give you professional solution based your workpieces fast and freely.We could product over 1000 sets cnc machine equipment one year.Our cnc machine tools has been exported over 40 countries and get good feedback.
We own about 500 wokers and 40 engineers, more than 5000 square meter .Our engineer team have rich experiences for equipment selection and process design, we can give you professional solution based your workpieces fast and freely.We could product over 1000 sets cnc machine equipment one year.Our cnc machine tools has been exported over 40 countries and get good feedback.
customer reviews
Our service
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Packing & Delivery
FAQ
1.How to get the AK164 Chinese 4 Axis Dental Bone Screw Swiss Lathe Machine Promotional CNC Medical Treatment Lathe?
Tell me the model ,quantity and your requirements, then we will give you our best price to you.
2.If we don’t know the model of the lathe,how to choose the model?
Send the drawing of the workpiece ,then our technicist will recommend the exact model to you.
3.How about the MOQ(Minimum Order Quantity)?
1 set
4.Can we place an order by TRADE ASSURANCE?
Of course, all of our orders can be placed by this way. Please rest assured your money.
5.How long about your guarantee period?
12 months. If there are accessories damaged during the warranty period,we will we will replace it for free..
Tell me the model ,quantity and your requirements, then we will give you our best price to you.
2.If we don’t know the model of the lathe,how to choose the model?
Send the drawing of the workpiece ,then our technicist will recommend the exact model to you.
3.How about the MOQ(Minimum Order Quantity)?
1 set
4.Can we place an order by TRADE ASSURANCE?
Of course, all of our orders can be placed by this way. Please rest assured your money.
5.How long about your guarantee period?
12 months. If there are accessories damaged during the warranty period,we will we will replace it for free..
