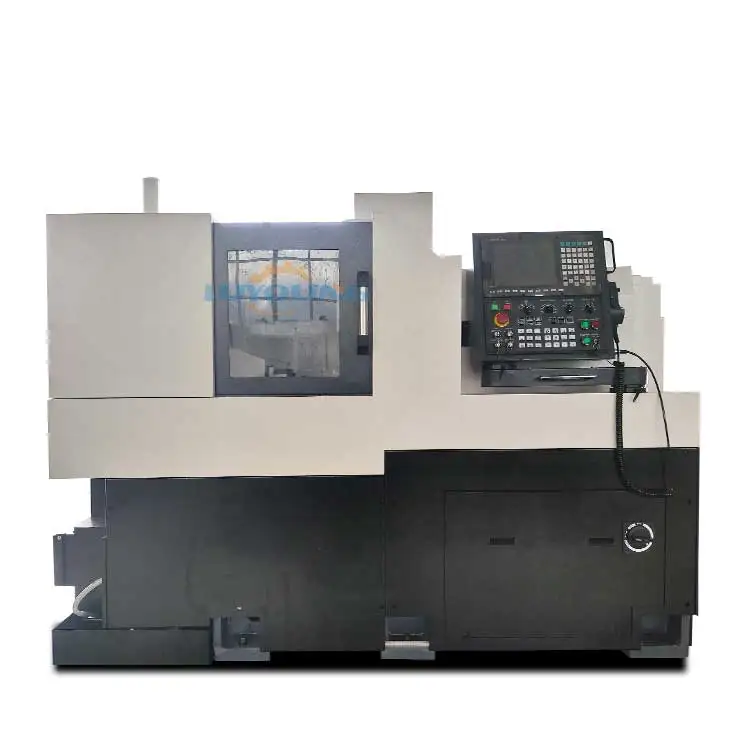

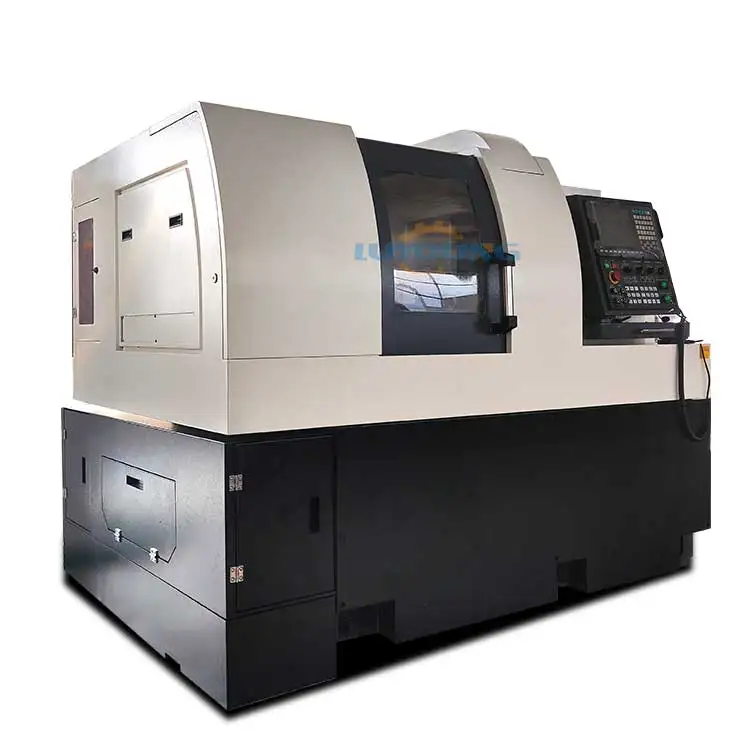

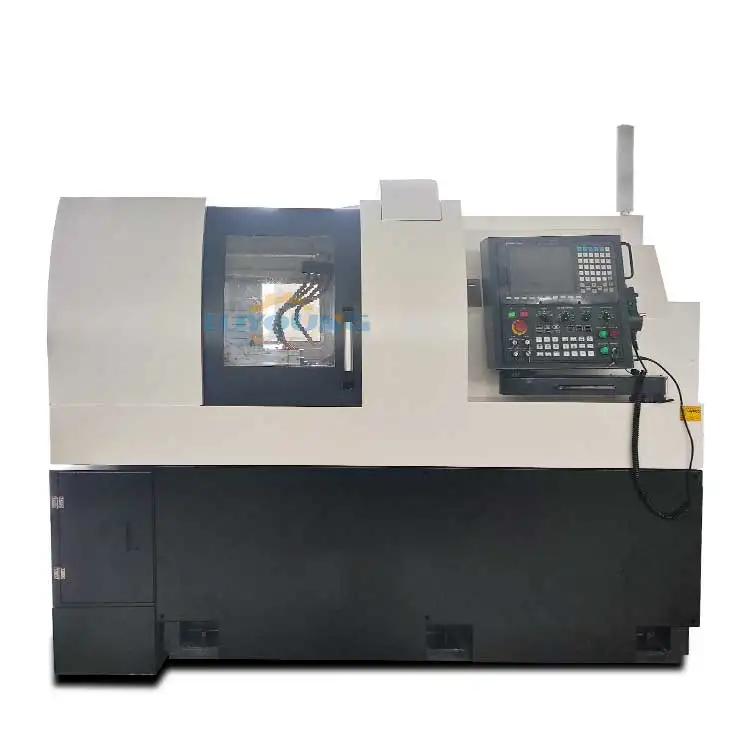

Factory Hot Sales Low Cost swiss Type Flat Bed Cnc Lathe SM265 China Horizontal Cnc Metal Lathe Machine
Description
factory hot sales Low cost swiss type flat bed cnc lathe SM265 china horizontal cnc metal lathe machine
Specification
Description |
Unit |
Specifications |
||||||
Processing capacity |
Max maching diameter |
mm |
￠26 |
|||||
Stroke |
mm |
250 |
||||||
Main Spindle RPM |
rpm |
8000 |
||||||
Sub Spindle RPM |
rpm |
8000 |
||||||
Cross Driven Tools |
rpm |
5000 |
||||||
Main/Sub Spindle CS axis indexing minimum unit |
度 |
1/1000（0.001） |
||||||
Rapid Traverse Rate |
X1 axis |
m/min |
24 |
|||||
Y/Z1/X2/Z2 axis |
m/min |
32 |
||||||
Number of tools |
O.D Tools |
ea |
5 |
|||||
Front Work Tools |
ea |
5 |
||||||
Cross Driven Tools |
ea |
4 |
||||||
Back Work Tools |
ea |
4（fixed） |
||||||
O.D Tools specification |
mm |
□16×16 |
||||||
Front Work Tools diameter |
mm |
（Standard）￠25 |
||||||
Power Tool Chuck Specifications |
mm |
ER16 |
||||||
Motors |
Spindle motor |
kw |
2.2/3.7 |
|||||
Sub Spindle motor |
kw |
1.5/2.2 |
||||||
Servo axis motor |
kw |
0.5 |
||||||
Cross Driven Tools motor |
kw |
0.75 |
||||||
Lubrication pump motor |
w |
100 |
||||||
Coolant motor |
kw |
0.4（pressure 0.5bar） |
||||||
Other |
Coolant tank capacity |
L |
180 |
|||||
Lubrication tank capacity |
L |
1.8 |
||||||
Height from floor tospindle center |
mm |
1000 |
||||||
Floor space |
(L) |
mm |
2610 |
|||||
(W) |
mm |
1530 |
||||||
(H) |
mm |
1674 |
||||||
Mass of machine |
kg |
3600 |
||||||
CNC control unit |
set |
FANUC oi TF PLUS |
||||||
Standard Accessories
NO |
Name |
Number |
1. |
Background Edit |
1 set |
2. |
Absolute / incremental editor |
1 set |
3. |
X-axis diameter / radius input |
1 set |
4. |
Constant surface speed control |
1 set |
5. |
Direct input of tool offset value |
1 set |
6. |
Single fixed cycle |
1 set |
7. |
Compound Fixed Cycle |
1 set |
8. |
Tip arc compensation |
1 set |
9. |
Metric / inch conversion |
1 set |
10. |
Graphic display |
1 set |
11. |
USB card socket |
1 set |
12. |
Processing time / quantity that represents the capabilities |
1 set |
13. |
Main/Sub Spindle Cs-axis control \ indexing locking devicelocking devicelocking devicelocking device |
1 set |
14. |
Hand retrace function |
1 set |
15. |
Collet chuck means |
1 set |
16. |
Pneumatic clamping mechanism |
1 set |
17. |
working lamp |
1 set |
18. |
Three-color warning lights |
1 set |
19. |
Conveyor Parts |
1 set |
20. |
Part receiving device |
1 set |
21. |
Security locks |
1 set |
22. |
transformer |
1 set |
23. |
tools |
1 set |
24. |
Sub spindle ejection apparatus |
1 set |
25. |
Centralized lubrication system |
1 set |
26. |
Ottomans to iron |
1 set |
27. |
Synchronous rotation guide means |
1 set |
28. |
Spindle, sub spindle in rigid tapping |
1 set |
29. |
Cross Driven Tools in rigid tapping |
1set |
Product Description
factory hot sales Low cost swiss type flat bed cnc lathe SM265 china horizontal cnc metal lathe machineSwiss lathe machinable stainless steel, titanium alloy, brass, aluminum alloy, platinum and iridium alloy. It is suitable for high-processing of complex parts such as aviation, aerospace, automobile, motorcycle,communication, refrigeration, optics, home appliances, electronics, watches, toys, medical and other industries.
Product Feature
factory hot sales Low cost swiss type flat bed cnc lathe SM265 china horizontal cnc metal lathe machine
1.Arrangement of tooling:13 fixed tools and 9 live tools among 22 tools can handle complex processing. 2.Fanuc system: Stability self diagnostician(chucking,ejector, oil cooling,cut, tool breakdown).
3.Front end tool:5 fixed tools in front end tool, 4 live tools in cross drill,6 fixed tools in bite tool.
4.Back-end fixed tool:1 fixed tool and 3 live tools.
5. Toggle system: Lt is possible to maintain continuous process without toggle’s damage.
6.Off-center tool:1 fixed tool and 2 live tools,finished parts by our machine tools
