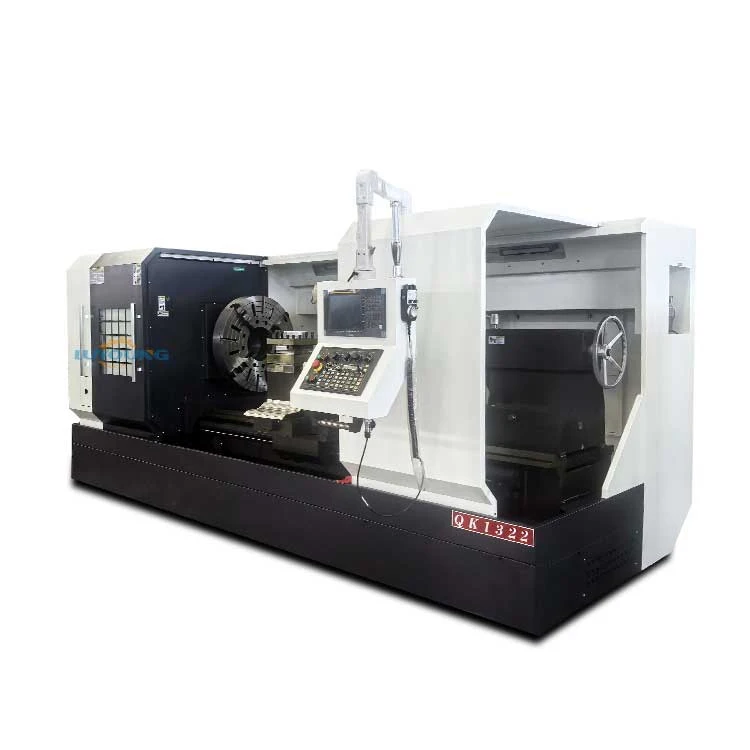

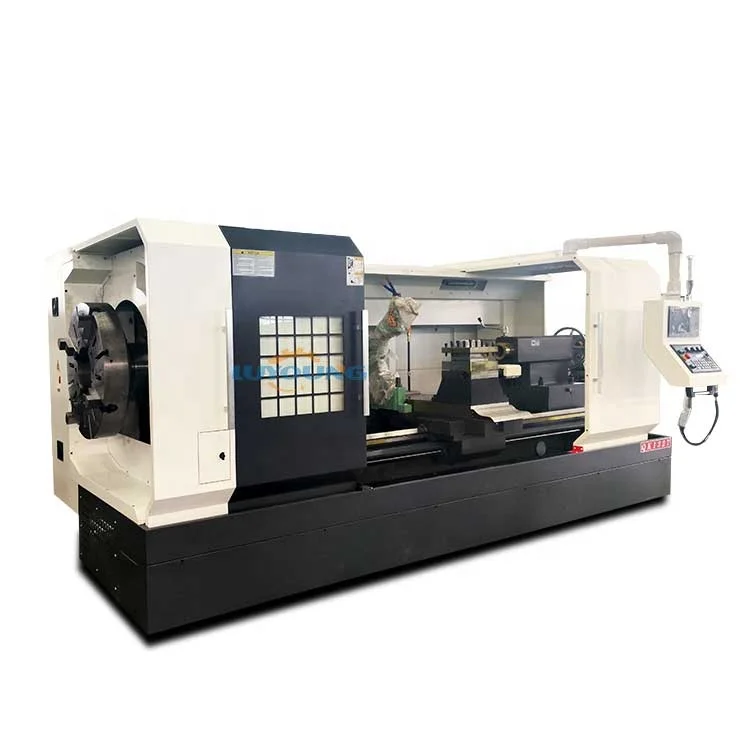

High Quality CNC Manufacturers Direct Discount Heavy Bedroom QK1322 Pipe Thread Lathe Large Aperture
Description
Product Description
High quality CNC Manufacturers Direct Discount Heavy Bedroom QK1322 Pipe Thread Lathe Large Aperture on the spindle box, and the workpiece passes through the through-hole and is clamped by two chucks located at both ends of the spindle for rotary motion. There are generally two ways to feed the cutting tool: one is to drive the slide plate and tool holder located in front of the bed by the screw, which is the same as that of a regular lathe; Another method is to use a flat comb blade external thread cutting head (see automatic opening and closing thread cutting head) located on the slide plate in the center of the bed to cut into the workpiece and move forward accordingly. Some machine tools for processing long pipes also come with workpiece support devices, such as center frames, follower frames, rear supports, etc.
High quality CNC Manufacturers Direct Discount Heavy Bedroom QK1322 Pipe Thread Lathe Large Aperture
Specification

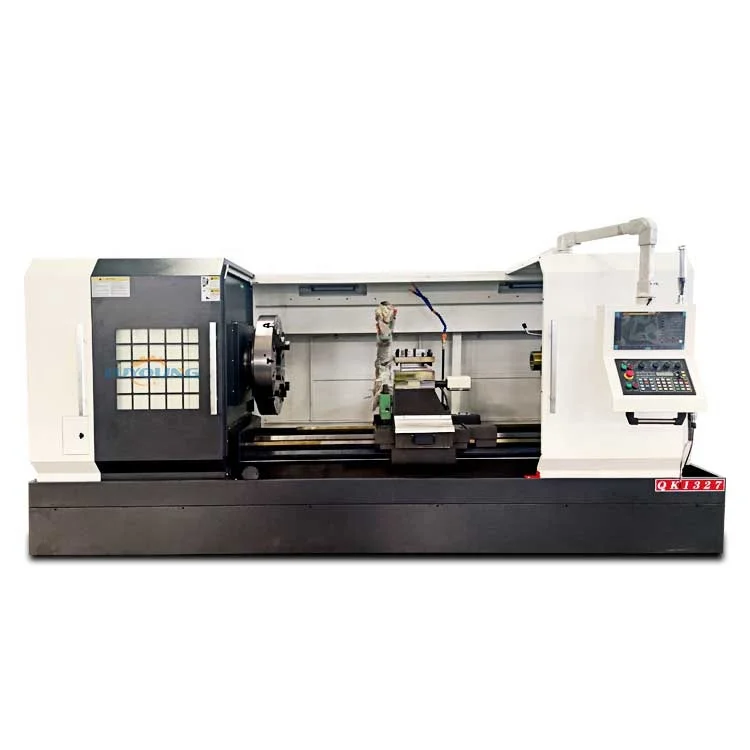

| SPECIFICATION | Units | QK1327 |
| Swing over bed | mm | 800 |
| Swing over cross slide | mm | 420 |
| Distance between centers | mm | 1000/1500/3000 |
| Pipe threading range | mm | 130-270 |
| Guideway width | mm | 600 |
| Max. load capacity | T | 4 |
| Spindle bore | mm | 220 |
| Spindle speed steps | - | manual. 4 steps |
| Spindle speed range | rpm | 25-89/108-382 |
| Chuck | mm | φ630 4-jaw manual |
| Turret/tool post | - | CNC turret 4 position |
| Tool shank size | mm | 32 x 32 |
| X axis travel | mm | 350 |
| Z axis travel | mm | 850/1350/2850 |
| X axis rapid traverse | mm/min | 4000 |
| Z axis rapid traverse | mm/min | 6000 |
| Tailstock quill diameter | mm | 100 |
| Tailstock quill taper | - | MT6 |
| Tailstock quill travel | mm | 250 |
| Main spindle motor | kW | 15 |
| Weight for 1000 | kg | 4200 |
Product Feature
1. The High quality CNC Manufacturers Direct Discount Heavy Bedroom QK1322 Pipe Thread Lathe Large Aperture tool has the characteristics of high degree of automation, high efficiency and high precision, wide application range and simple operation
2, CNC pipe screw lathe is my current more common lathe, for the medium CNC lathe in the boutique.
3. The headstock is driven by variable frequency motor with stepless speed change. Domestic well-known manufacturers spindle bearing, domestic well-known brand three jaw chuck.
4, CNC system modular design, easy debugging, easy maintenance, x,z axis using high-power, servo motor, advanced performance, strong reliability.
5, casting bed saddle. Skateboard, internal rib layout is reasonable, the selection of high-precision ball screw produced in Jining, high precision, accurate transmission. Domestic famous brand four-station electric tool holder, high positioning accuracy, strong rigidity, high reliability.
