Description

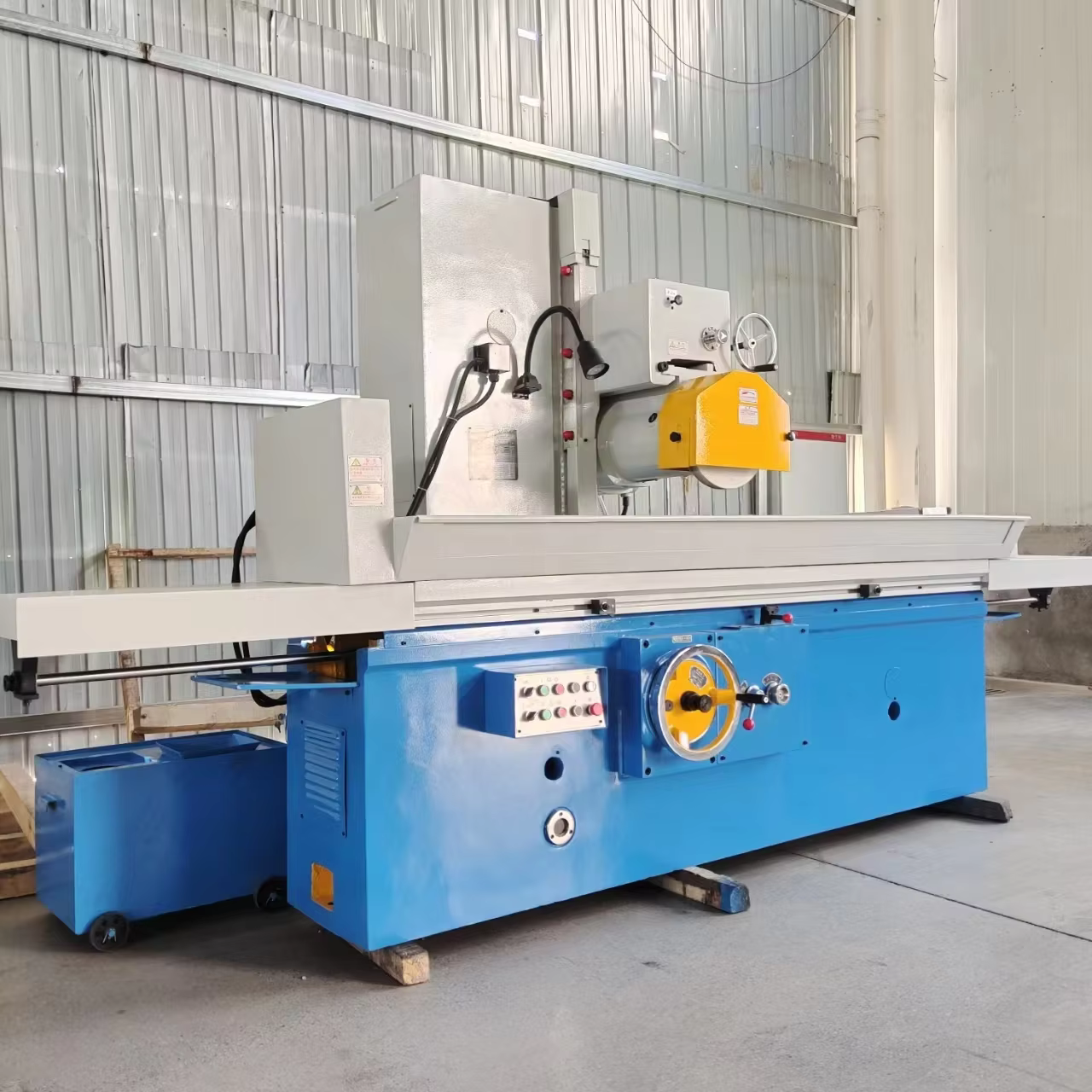

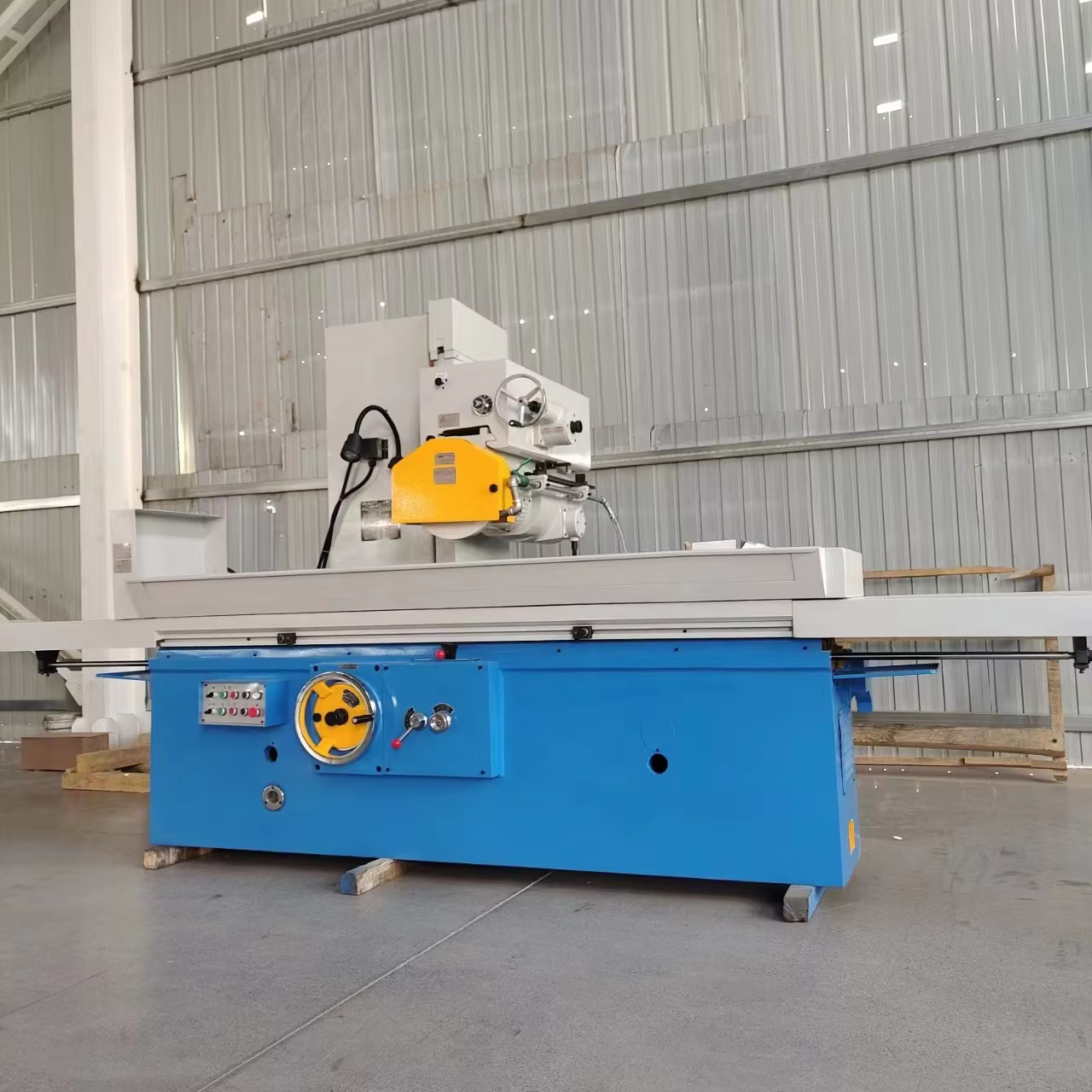

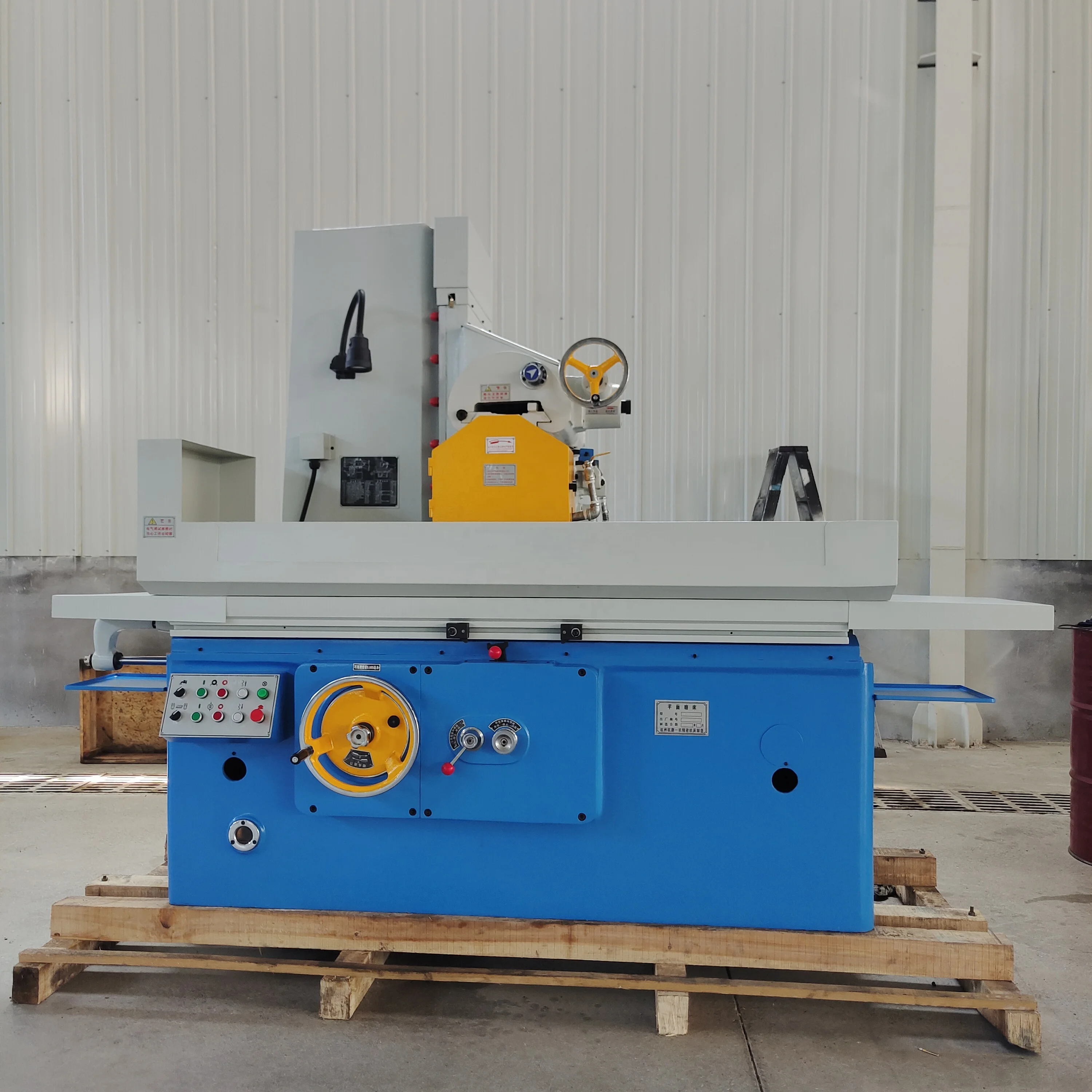

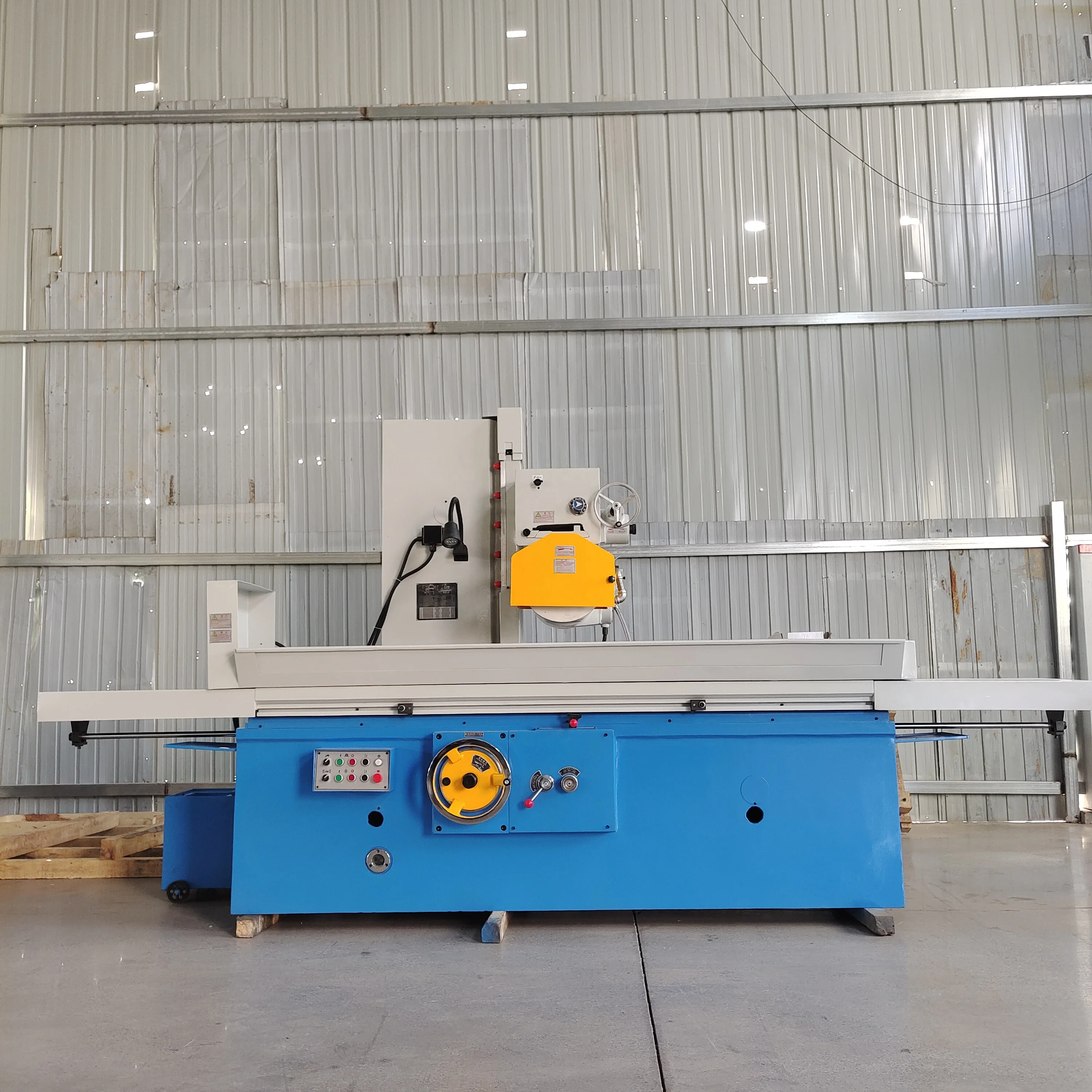

M7140-1000MM High quality small flat bed precision surface grinding machine
Specification
Worktable |
Size（LengthxWidth） |
mm |
1000x400 |
|||
Longitudinal motion stroke |
mm |
1100 |
||||
T-solt quantityx width(mm) |
mm |
3x18 |
||||
Longitudinal velocity(stepless) |
m/min |
3-25 |
||||
Distance from table surface to spindle center |
mm |
600 |
||||
Grinding head |
The stroke of grinding head |
horizontal（manual and hydraulic） |
mm |
440 |
||
vertical（manual） |
mm |
400 |
||||
Size（ODxWxID） |
mm |
350x40x127 |
||||
speed of grinding wheel spindle |
rpm |
1440 |
||||
Vertical feed hand wheel per movement |
mm |
0.01 |
||||
Vertical feed wheel movement per lap |
mm |
1 |
||||
Total motor power |
kw |
8.99 |
||||
Grinding head motor |
power |
kw |
5.5 |
|||
Speed |
r/min |
1440 |
||||
Fast lifting moter |
power |
kw |
0.37 |
|||
Speed |
r/min |
1440 |
||||
Oil pump motor power |
Power |
kw |
3 |
|||
Speed |
r/min |
960 |
||||
Cooling pump motor |
Power |
kw |
0.125 |
|||
Speed |
r/min |
2800 |
||||
Oil pump |
oil flow |
L/min |
100 |
|||
working pressure |
Mpa |
2.5 |
||||
Accuracy |
The machied surface of the base of parallelism |
mm |
40:00.0 |
|||
Surface roughness |
u.m |
Ra0.63 |
||||
Weight |
Net weight/gross weight |
kg |
3500 |
|||
Machine size（LxWxH） |
mm |
2800x1800x2100 |
||||
Product Description
The main performance characteristics：
TheM7140-1000MM High quality small flat bed precision surface grinding machine screw rod of the machine tool is made of special alloy steel through strict processing and heat treatment technology.Grinding head vertical rapid lifting, improve production efficiency.
The grinding head lateral movement driven by hydraulic motor, which can also be manually.
The lifting mechanism and the triangle bracket adopt eccentric design, which is easy to adjust, and greatly prolong the service life of the machine tool.
Application：
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
TheM7140-1000MM High quality small flat bed precision surface grinding machine screw rod of the machine tool is made of special alloy steel through strict processing and heat treatment technology.Grinding head vertical rapid lifting, improve production efficiency.
The grinding head lateral movement driven by hydraulic motor, which can also be manually.
The lifting mechanism and the triangle bracket adopt eccentric design, which is easy to adjust, and greatly prolong the service life of the machine tool.
Application：
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
