Description

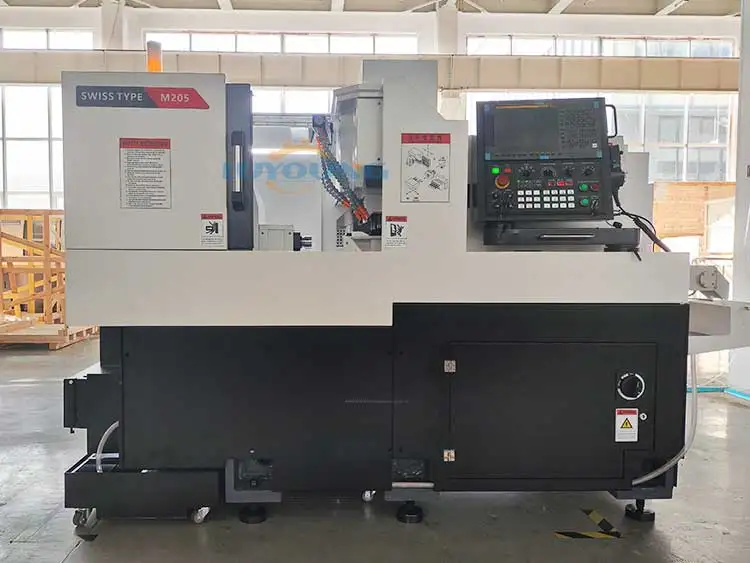

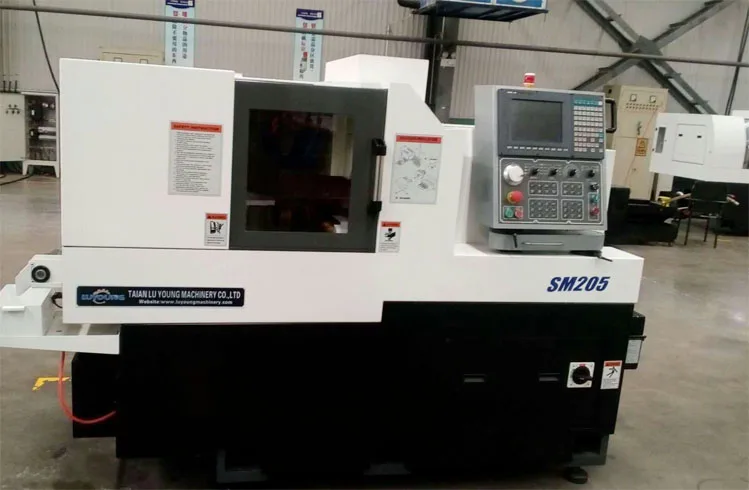

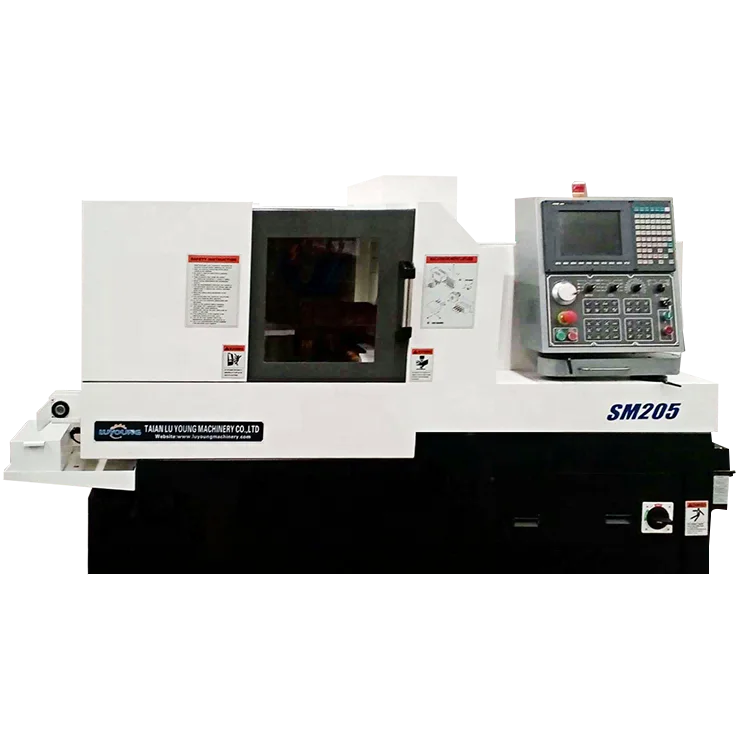

SM205 Accurate dual spindle swiss type cnc auto bar feeder lathe
Technical parameters
| Description | Unit | Specifications | ||
| Processing capacity | Max maching diameter | mm | 20 | |
| Stroke | mm | 260 | ||
| Max. Turning Diameter | mm | 20 | ||
| Main Spindle RPM | rpm | 8000 | ||
| C axis Additional Positive Brake | 1/1000(0.001) | |||
| Max. Turning Diameter | mm | 20 | ||
| Traverse Rate | Stroke | X1 axis | mm | 60 |
| Y axis | mm | 342.5 | ||
| Z1 axis | mm | 260 | ||
| X2 axis | mm | 355 | ||
| Z2 axis | mm | 220 | ||
| Rapid Traverse Rate | X1 axis | m/min | 24 | |
| Number of tools | O.D Tools | ea | 6 | |
| Front Work Tools | ea | 5 | ||
| Cross Living Tools | ea | 4 | ||
| Back Work Tools | ea | 3(Rotation)+1(fixed) | ||
| O.D Tools specification | mm | 12×12 | ||
| Front Work Tools diameter | mm | (Standard)25 | ||
| Cross Driven Tools motor | kw | 2.5kw | ||
| Back Work Tools motor | kw | 1 | ||
| Lubrication pump motor | w | 5 | ||
| Coolant motor | kw | 0.4(pressure 0.5bar) | ||
| Coolant tank capacity | L | 180 | ||
| Lubrication tank capacity | L | 1.8 | ||
| Height from floor tospindle center | mm | 1000 | ||
| Dimension | mm | 2560×1510×1660 | ||
| Cross Weight | KG | 3600 | ||
Product Description

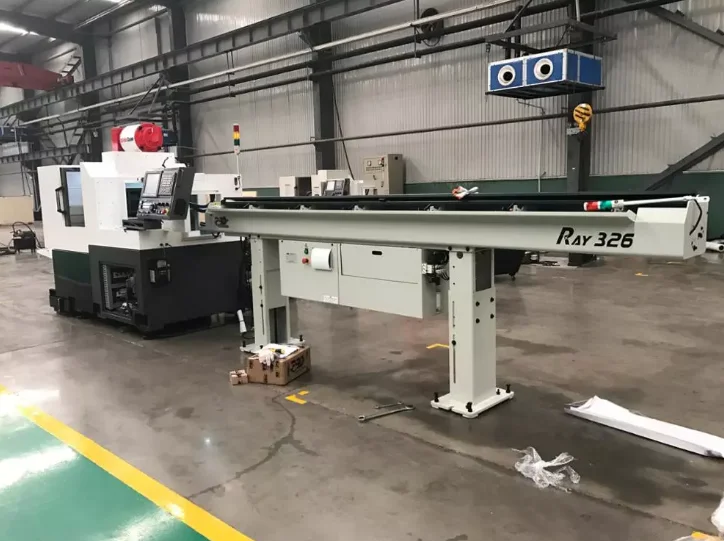

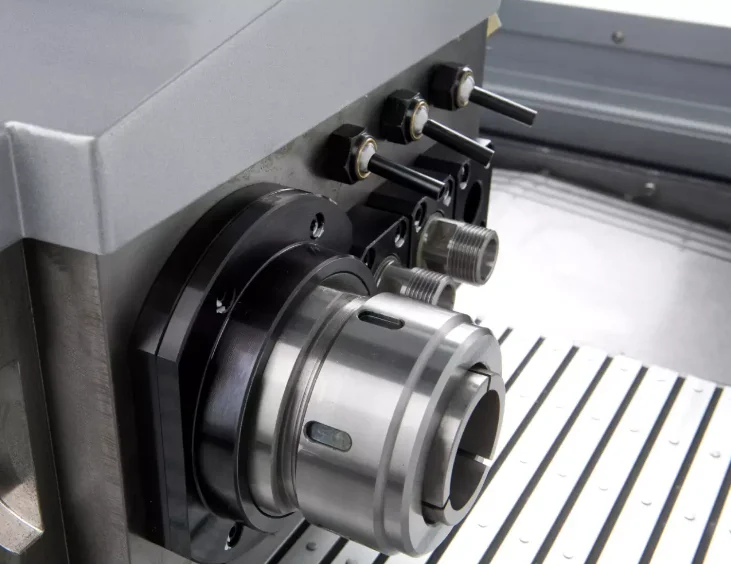

SM205 Accurate dual spindle swiss type cnc auto bar feeder lathe configuration vice spindle, belonging to the turning and milling compound model. The biggest feature is the workpiece after a clamping can be achieved complete processing, reducing the number of equipment required, but also improve the production efficiency. After cutting off the parts, the sub-spindle grips the part and completes the machining on the back, such as drilling, boring and milling on the back. The machine is also equipped with automatic feeder, the feeder part can be installed short feeder and long feeder. Can be achieved continuous feeding of materials under the continuous processing. The equipment is most suitable for communications, optics, medical equipment and other high-precision, work complex slender shaft parts.
Product features

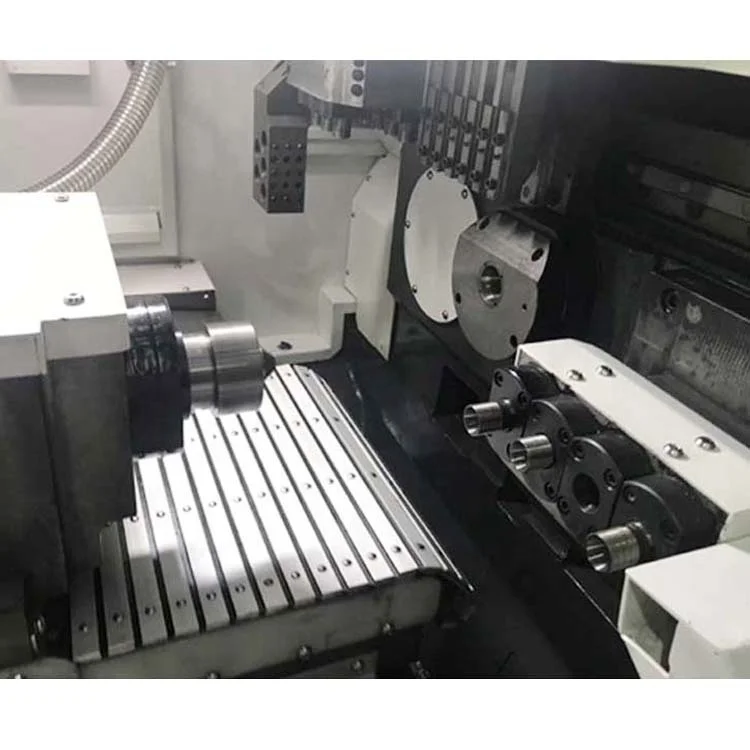

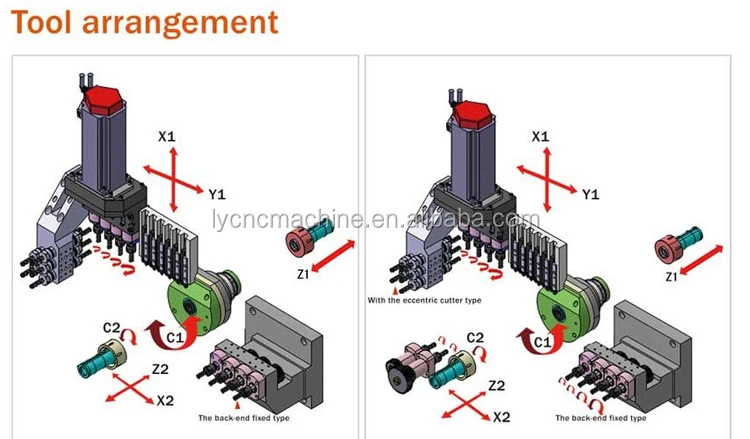

1.SM205 flat bed swiss type lathe machining with metal Arrangement of tooling:13 fixed tools and 9 live tools among 22 tools can handle complex processing.
2.SM205 Fanuc system: Stability self diagnostician(chucking,ejector, oil cooling,cut, tool breakdown).
3. swiss type cnc lathe Front end tool:5 fixed tools in front end tool, 4 live tools in cross drill,6 fixed tools in bite tool.

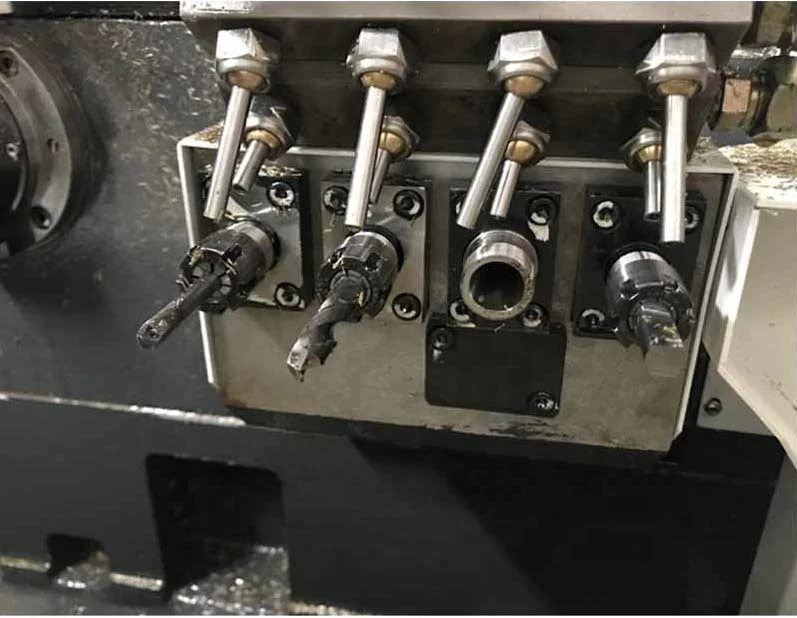

4.SM205 Back-end fixed tool:1 fixed tool and 3 live tools.
5. swiss type cnc lathe Toggle system: Lt is possible to maintain continuous process without toggle’s damage.
6.Off-center tool:1 fixed tool and 2 live tools,finished parts by our machine tools
Packaging & Shipping
1.Port: Qingdao port or Shanghai port
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.
1. Our customers come from more than 40 different countries and promote the most suitable products for different countries to provide the best service;
2 we participated in many exhibitions, the Chinese machinery exhibition, guangzhou commodities fair, through the exhibition to expand overseas market, we invite customers to visit our factory, also can be customized according to customer demand, through our products and services for customers
Company Information
Luyang CNC machinery company has 20 years of production lathe experience, main CNC lathe, CNC milling machine, processing center, Swiss CNC lathe high-tech enterprise.The company has a professional production and development team and favorable after-sales technical team support.The company takes the strength to make the product, the service wins the customer, the customer as the basic management concept.Our company has gained a good reputation both at home and abroad by providing customers with cost-effective CNC machine tools and excellent timely sales advice and after-sales service.Development, innovation, people-oriented, is the direction my company has been working on.
Our company continuously strengthen product performance improvements, innovation cost-effective CNC machinery, optimize product quality control system, to provide global support services as the dominant direction of the development of the company.
Our Services
1. The warranty period of our products is one year. If there is any damage in the warranty period, we will send it to you for free.We provide 24-hour online technical service and contact us at any time.
2. 365 days without false service, uninterrupted supply, pre-sales consultation, after-sales service and other technical support
We also offer free technical training and overseas services.
Why choose us
1.Factory price.Spend the least money on the best machines.
2.Low failure rate.All the accessories use the famous brands at home and abroad;More than 20 years' experience in this field,strictly control the quality.
3.Supprt oversea service.Our engineer have more exprience for oversea service,supply good service.
4.Export more than 40 countries and receive good feedback from our customer.
5.Trade Assurance.All of the order could placed by Trade Assurance, keep your money safe.
FAQ
1. How can I get a quotation?
A. Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.
2. Can you provide customized machine or SPM (Special purpose machine)?
A. Yes, we provide smart CNC solutions for our customer, in order to increase efficiency.
3. Can you provide training for operation CNC machines?
A. Yes, free training in our factory is available.
4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.
5. What’s the delivery time, and what’s the package?
A. Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package.
