Description
Product Description
SM325 Swiss Type CNC Automatic Lathe with Dual Spindles configuration vice spindle, belonging to the turning and milling compound model. The biggest feature is the workpiece after a clamping can be achieved complete processing, reducing the number of equipment required, but also improve the production efficiency. After cutting off the parts, the sub-spindle grips the part and completes the machining on the back, such as drilling, boring and milling on the back.

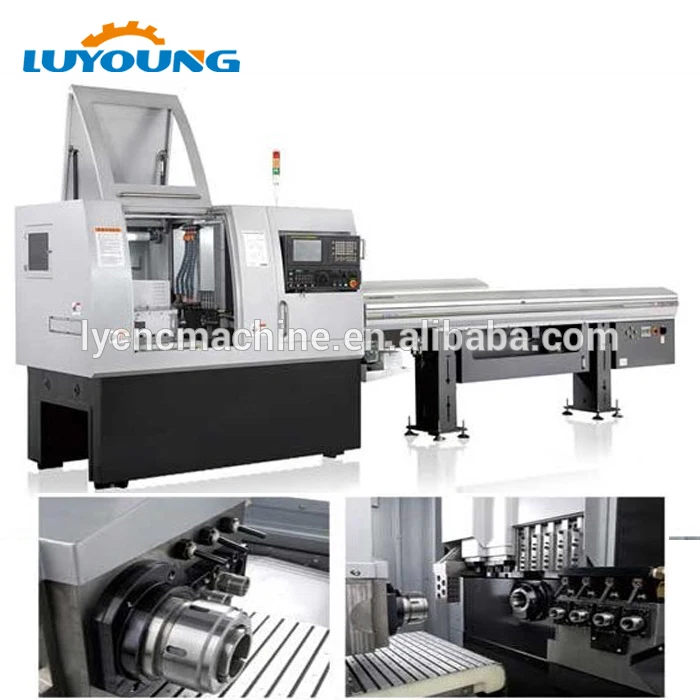

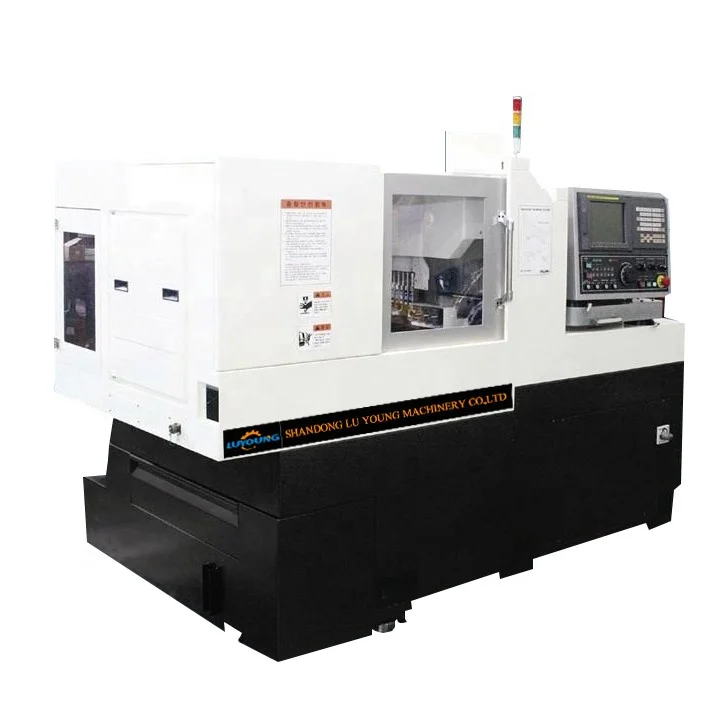

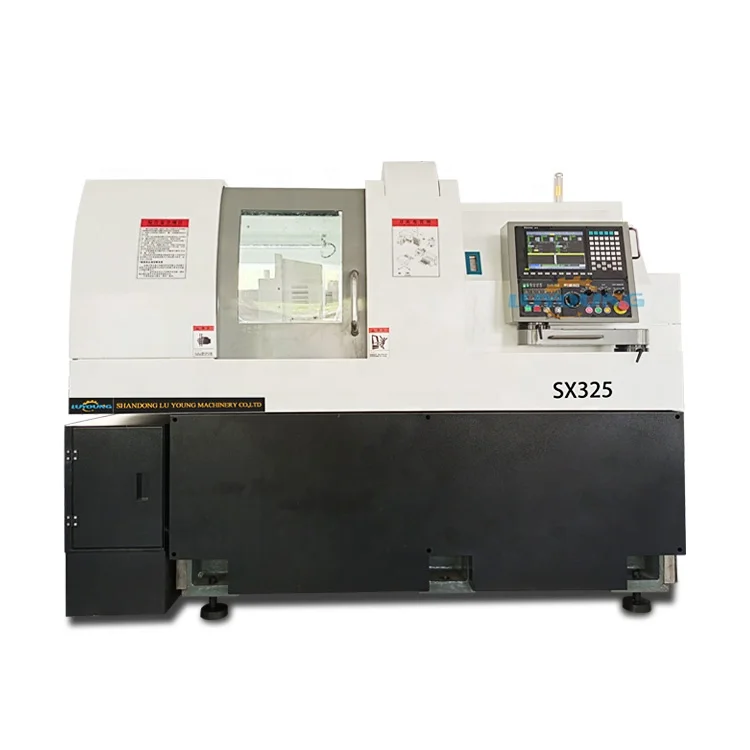

SM325 Swiss Type CNC Automatic Lathe with Dual Spindles
| unit | specifications | |||
| Processing capacity | Max maching diameter | mm | 32 | |
| Stroke | mm | 220 | ||
| Main Spindle RPM | rpm | 8000 | ||
| Sub Spindle RPM | rpm | 8000 | ||
| Cross Driven Tools RPM | rpm | 5000 | ||
| Additional Positive Brake | 1/1000 (0.001) | |||
| Max. Turning Diameter | mm | 40 | ||
| Traverse Rate | Stroke | X1 axis | mm | 60 |
| Y axis | mm | 380 | ||
| Z1 axis | mm | 220 | ||
| X2 axis | mm | 380 | ||
| Z2 axis | mm | 220 | ||
| Rapid Traverse Rate | X1 axis | m/min | 24 | |
| Y/Z1 /X2 /Z2 axis | m/min | 32 | ||
| Arrangement of tools | O.D Tools | ea | 5 | |
| Front Work Tools | ea | 5 | ||
| Cross Driven Tools | ea | 4 | ||
| Back Work Tools | ea | 4 | ||
| O.D Tools specification | mm | 16 *16 | ||
| Front Work Tools diameter | mm | 3set 25mm 2set 20mm | ||

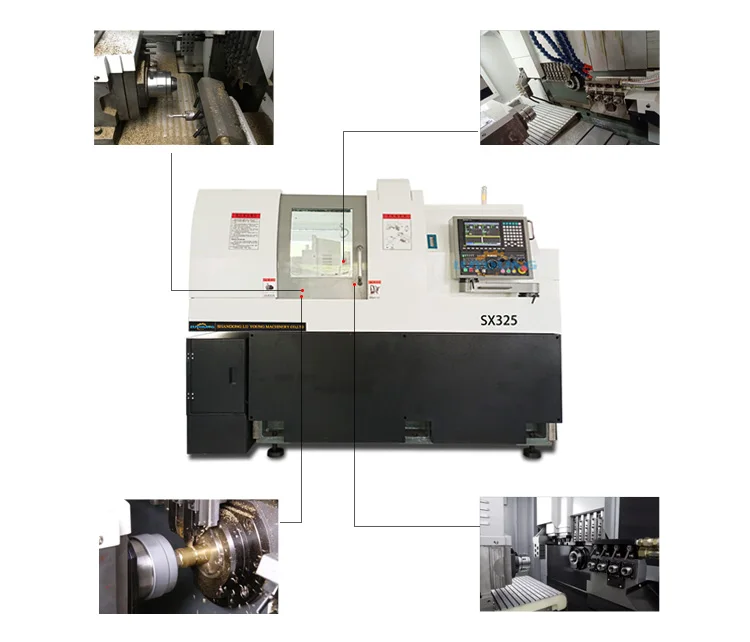

Product features

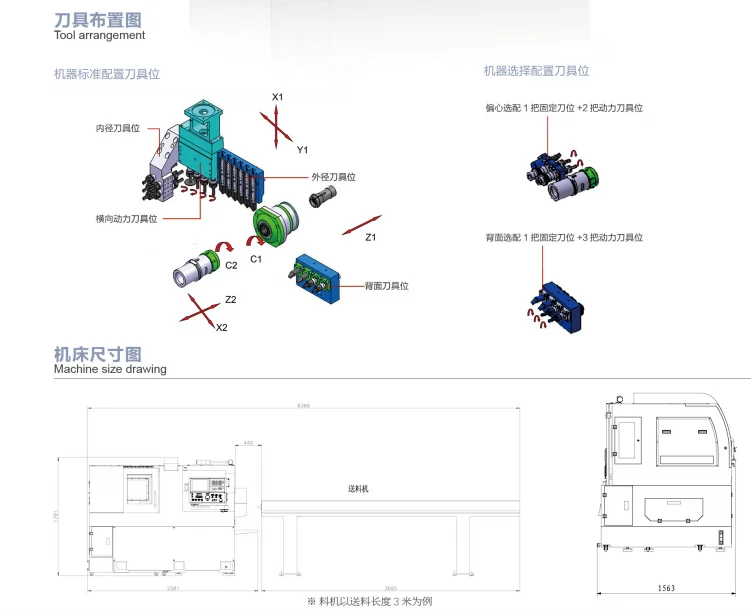

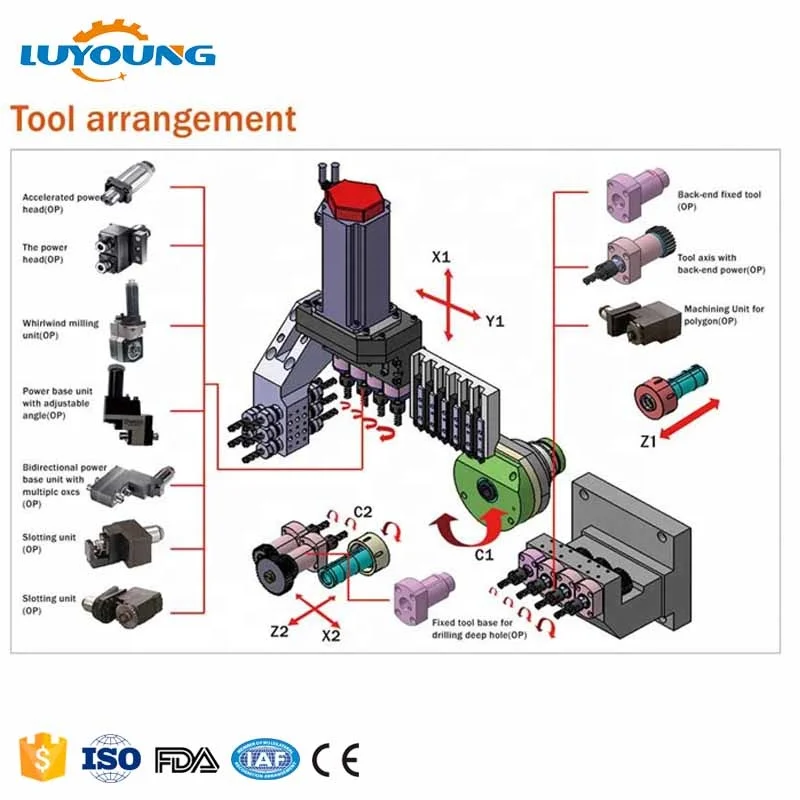

1.SM325 Swiss Type CNC Automatic Lathe with Dual Spindles manufactureArrangement of tooling:13 fixed tools and 9 live tools among 22 tools can handle complex processing.
2.Fanuc system: Stability self diagnostician(chucking,ejector, oil cooling,cut, tool breakdown).
3.Front end tool:5 fixed tools in front end tool, 4 live tools in cross drill,6 fixed tools in bite tool.

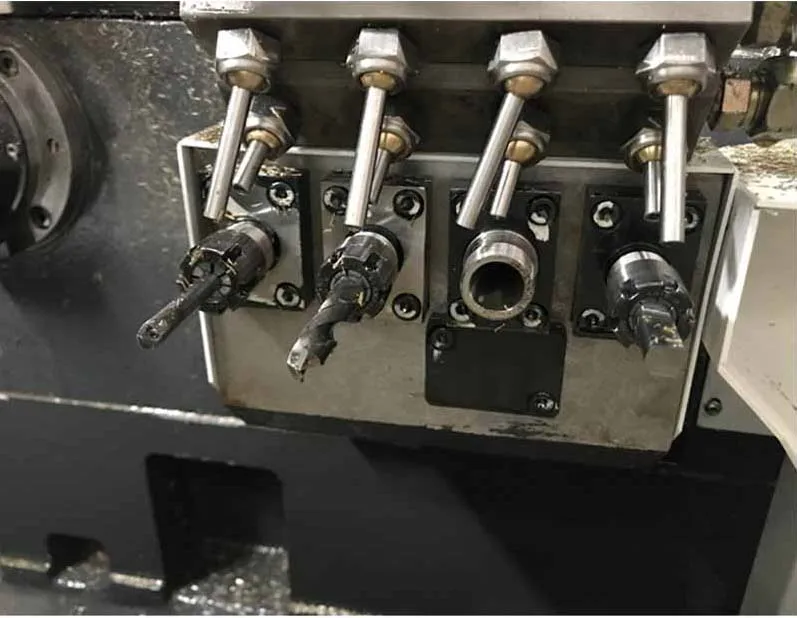

4.Back-end fixed tool:1 fixed tool and 3 live tools.
5. Toggle system: Lt is possible to maintain continuous process without toggle’s damage.
6.swiss type cnc automatic lathe Off-center tool:1 fixed tool and 2 live tools,finished parts by our machine tools
Company Information
Luyang CNC machinery company has 20 years of production lathe experience, main CNC lathe, CNC milling machine, processing center, Swiss CNC lathe high-tech enterprise.The company has a professional production and development team and favorable after-sales technical team support.The company takes the strength to make the product, the service wins the customer, the customer as the basic management concept.Our company has gained a good reputation both at home and abroad by providing customers with cost-effective CNC machine tools and excellent timely sales advice and after-sales service.Development, innovation, people-oriented, is the direction my company has been working on.
Our company continuously strengthen product performance improvements, innovation cost-effective CNC machinery, optimize product quality control system, to provide global support services as the dominant direction of the development of the company.
Feedback from our customer

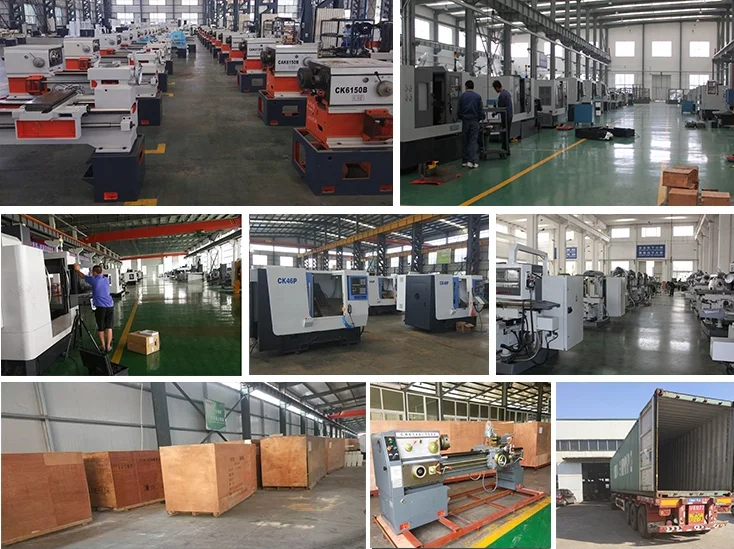

exhibition hall
1. Our customers come from more than 40 different countries and promote the most suitable products for different countries to provide the best service;
2 we participated in many exhibitions, the Chinese machinery exhibition, guangzhou commodities fair, through the exhibition to expand overseas market, we invite customers to visit our factory, also can be customized according to customer demand, through our products and services for customers
Packaging & Shipping
packaging and transportation
1. We use the special plywood box for export, and our products are shipped by sea.
2. We can guarantee the quality of the goods, while also reducing the loss, with environmental protection, good resistance and good barrier
Our Services
1) after the final acceptance of the machine, party b shall carry out three packages of service to the product, the warranty period shall be 12 months, and the product shall be repaired free of charge during the warranty period.
(2) within the warranty period, if the reason for the user is checked and verified: the loading and unloading process and the storage time have caused the mechanical appearance or internal damage;The user must pay all maintenance and repair expenses for the damage caused by improper operation and self-disassembly.
(3) the machine malfunction, get the user information, can accurately determine the cause of the problem and treatment measures, reply immediately, if not immediately reply, reply within 24 hours, and sent to the scene to give treatment as soon as possible, the specific time depending on the parts to the length of time.
(4) after the warranty period, our company will continue to provide maintenance services for users and collect parts cost and service fees according to my company's charging standard.
Why choose us
1. We have excellent technology, have a professional r&d team and quality control system, manufacture and sell the most reliable and reliable technical products, and strictly control each product.Make sure the products are 100% qualified, and can be customized according to your requirements.
2 we have a solid strength, committed to the development achievements of numerical control equipment customers, innovation, honest business philosophy, through the international quality certification standards, products many times get the patent certificate.
3. We have reliable quality, strict control of quality control, high quality products and high efficiency services. We have received the approval of customers, and our price is excellent.
4 have perfect service, equipped with professional service team, perfect after-sales service team, quickly solve the problem for you.
FAQ
1. How can I get a quotation?
A. Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.
2. Can you provide customized machine or SPM (Special purpose machine)?
A. Yes, we provide smart CNC solutions for our customer, in order to increase efficiency.
3. Can you provide training for operation CNC machines?
A. Yes, free training in our factory is available.
4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.
5. What’s the delivery time, and what’s the package?
A. Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package.
