ST125 Cnc swiss Type Lathe Auto Metal Turning High Precision Factory Price Spindle 7/8axis FANUC 2 Spindle
Description
ST125 cnc swiss type lathe auto Metal Turning High Precision Factory Price Spindle 7/8axis FANUC 2 spindle
Specification
Main functional accessories |
Main technical parameters |
||||
numerical control system |
Taiwan Province new generation 210TB+10.4 inch LCD monitor |
Maximum machining diameter |
Ø12mm |
||
Spindle motor |
1.5/2.2Kw built-in electric spindle |
Sub-maximum feeding length degree |
Guide sleeve: 120mm Without guide sleeve: 2.5D |
||
Auxiliary shaft motor |
1.5/2.2Kw built-in electric spindle |
lathe tool |
6x□10 |
||
Side milling motor |
An Chuan 750w electric machinery |
Side milling power head |
1xER16+3xER11 |
||
Feed motor |
An Chuan 750w electric machinery |
End tool holder |
5xØ22 |
||
mainshaft bearing |
Japan NSK, P4 bearing |
Back end cutter |
4xER16 |
||
Synchronous guide sleeve bearing |
Japan NSK/NACHI, grade P4 bearing |
Maximum spindle speed |
10000RPM |
||
Ball screw |
Taiwan Province HIWIN/PMI.C3 grinding screw rod |
Maximum speed of auxiliary spindle |
10000RPM |
||
Screw bearing |
Japan NSK/NACHI special bearing for screw rod |
Fast moving speed |
X1/Y1/Z1/Z2:32m/min X2:24m/min |
||
Linear guide |
Taiwan Province HIWIN/PMI.P grinding guide rail |
positioning accuracy |
≤0.005 |
||
pneumatic system |
Japan SMC+ Taiwan Province Yadeke |
Repetitive positioning accuracy |
≤0.0025 |
||
lubrication system |
Intelligent valley |
C-axis indexing |
0.001 degrees |
||
Electric cabinet system |
Independent electric cabinet |
Spindle through hole |
Ø13mm |
||
electrical element |
Omron/Schneider |
Machine tool size |
2100*1100*1685 |
||
Synchronous belt |
UNITTA Japan |
Machine tool weight |
1900 |
||
Product Description
ST125 cnc swiss type lathe auto Metal Turning High Precision Factory Price Spindle 7/8axis FANUC 2 spindle
1. High-speed, high-precision, and high-efficiency: The optimal tool layout adopts high-speed arithmetic processing control to minimize the tool change time and obtain the best positioning at the same time, reducing the auxiliary time to the shortest.
2. High configuration: Concentrating the most advantageous functional components, multi-axis abundant tool configuration, and standard power tools, which greatly expands the processing range and meets the complex processing of complex parts.
3. Convenient operation processing space: Convenient operation space, easy to change the tool, vertical downward tool can obtain the best chip removal.
2. High configuration: Concentrating the most advantageous functional components, multi-axis abundant tool configuration, and standard power tools, which greatly expands the processing range and meets the complex processing of complex parts.
3. Convenient operation processing space: Convenient operation space, easy to change the tool, vertical downward tool can obtain the best chip removal.
Product Feature
Application
The use requirements of ST125 cnc swiss type lathe auto Metal Turning High Precision Factory Price Spindle 7/8axis FANUC 2 spindle
1. Products that require mass processing are suitable for automatic lathe processing. Trouble.
2. When using an automatic lathe for processing, the workpiece structure should be suitable for automatic sorting of the workpiece and suitable for automatic feeding.
3. Whether the material of the workpiece is suitable for automatic processing. Generally, brass, zinc alloy, ordinary carbon steel and other materials have better processing performance and less wear on tools, so they are more suitable for automatic lathe processing.
4. Whether the diameter, length, and processing technology of the workpiece are suitable for automatic lathe processing.
1. Products that require mass processing are suitable for automatic lathe processing. Trouble.
2. When using an automatic lathe for processing, the workpiece structure should be suitable for automatic sorting of the workpiece and suitable for automatic feeding.
3. Whether the material of the workpiece is suitable for automatic processing. Generally, brass, zinc alloy, ordinary carbon steel and other materials have better processing performance and less wear on tools, so they are more suitable for automatic lathe processing.
4. Whether the diameter, length, and processing technology of the workpiece are suitable for automatic lathe processing.
Company Profile
Luyang CNC machinery company has 20 years of production lathe experience, main CNC lathe, CNC milling machine, processing center,Swiss CNC lathe high-tech enterprise.The company has a professional production and development team and favorable after-sales technical team support.The company takes the strength to make the product, the service wins the customer, the customer as the basic management concept.Our company has gained a good reputation both at home and abroad by providing customers with
cost-effective CNC machine tools and excellent timely sales advice and after-sales service.Development, innovation,people-oriented, is the direction my company has been working on.Our company continuously strengthen product performance improvements, innovation cost-effective CNC machinery, optimize product quality control system, to provide global support services as the dominant direction of the development of the company.
cost-effective CNC machine tools and excellent timely sales advice and after-sales service.Development, innovation,people-oriented, is the direction my company has been working on.Our company continuously strengthen product performance improvements, innovation cost-effective CNC machinery, optimize product quality control system, to provide global support services as the dominant direction of the development of the company.
Packing & Delivery
1.Non-fumigation packaging, we use seaworthy plywood.
2. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
3.Water-proof and damp proof, water resistant film wraped all the machine.
4.Fully sheathed case,prevention of collision and keep the goods intact.
2. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
3.Water-proof and damp proof, water resistant film wraped all the machine.
4.Fully sheathed case,prevention of collision and keep the goods intact.

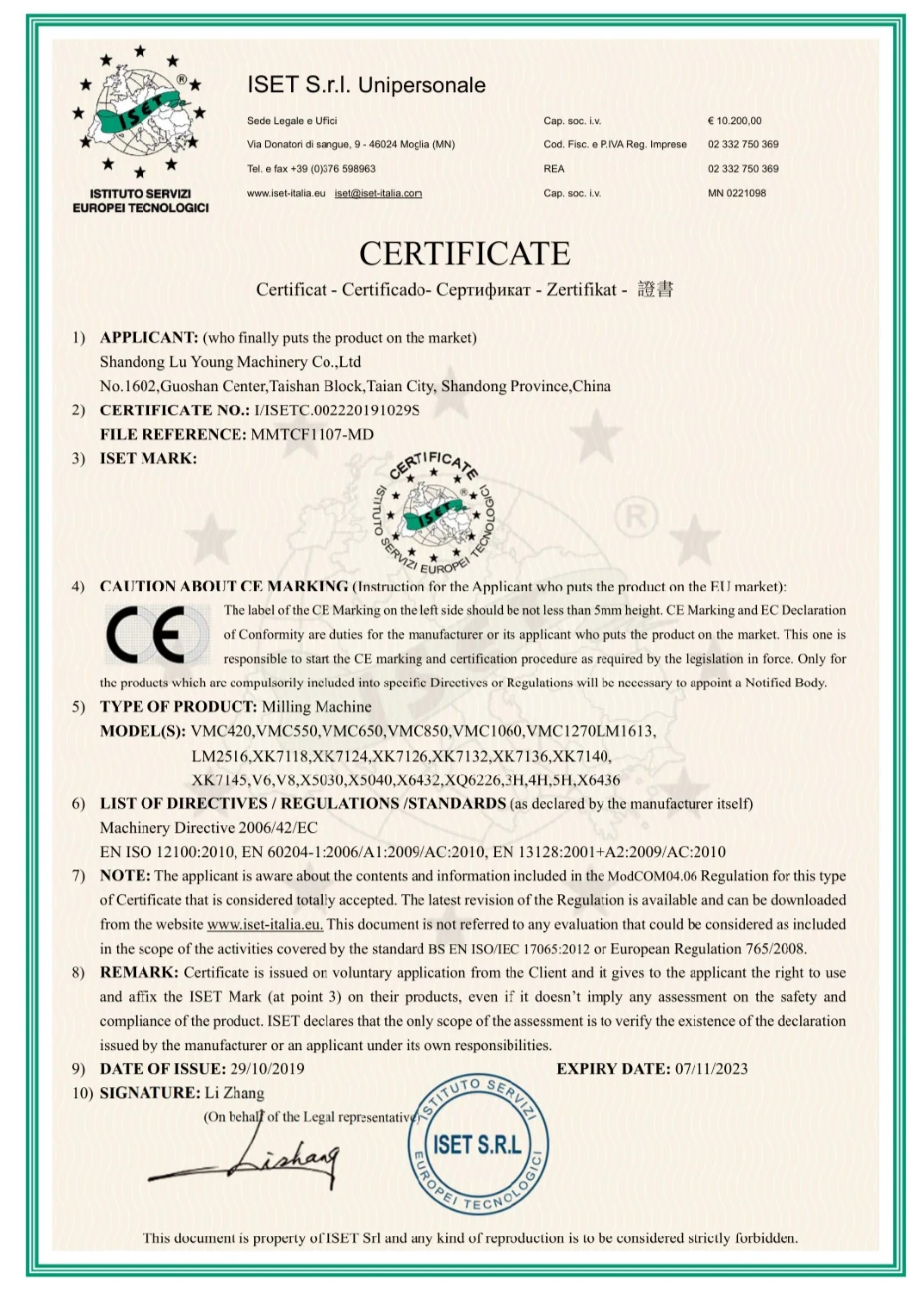

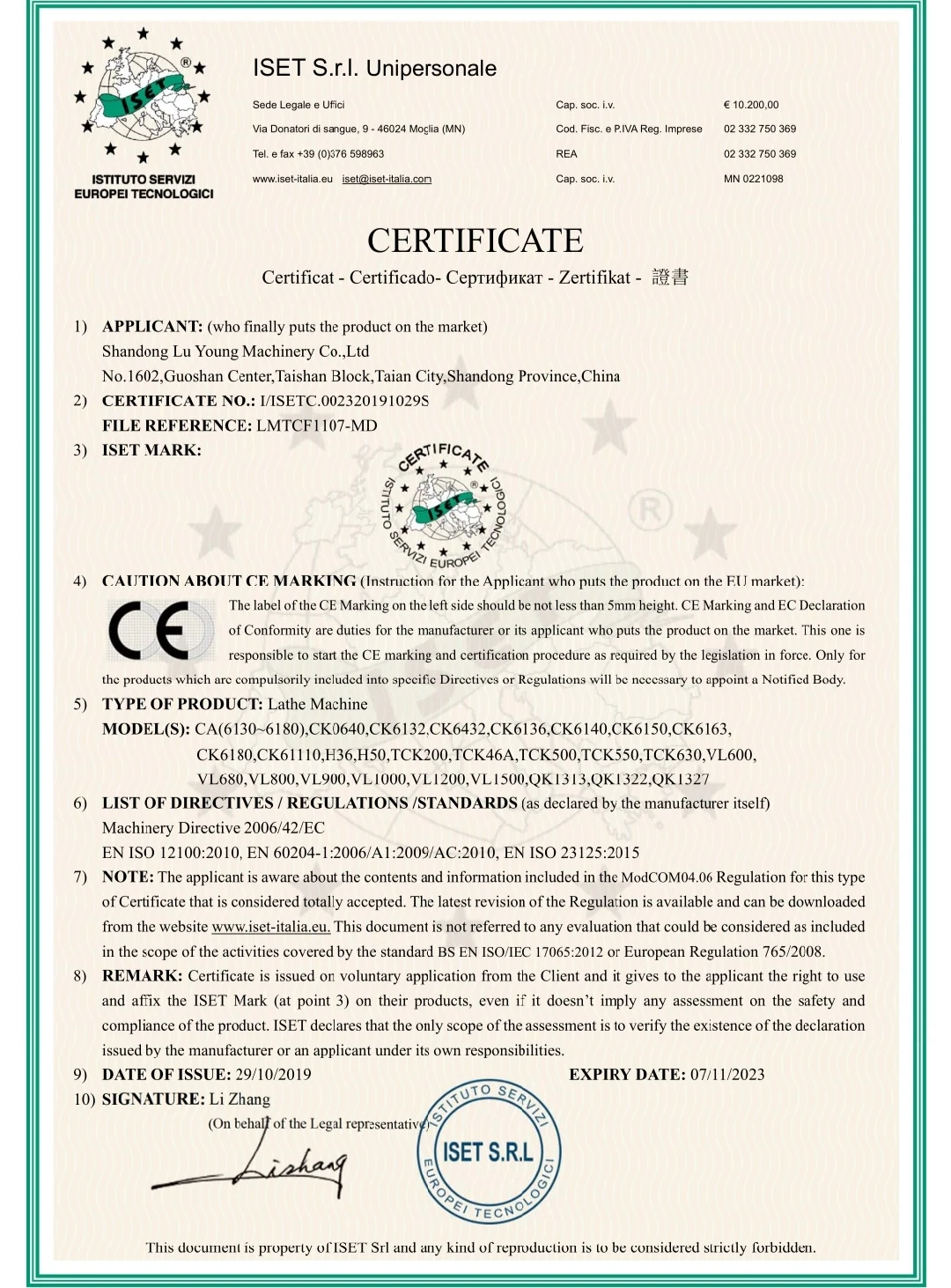

Certifications
FAQ
1. How can I get a quotation?
A. Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.
2. Can you provide customized machine or SPM (Special purpose machine)?
A. Yes, we provide smart CNC solutions for our customer, in order to increase efficiency.
3. Can you provide training for operation CNC machines?
A. Yes, free training in our factory is available.
4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.
5. What’s the delivery time, and what’s the package?
A. Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package.
A. Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.
2. Can you provide customized machine or SPM (Special purpose machine)?
A. Yes, we provide smart CNC solutions for our customer, in order to increase efficiency.
3. Can you provide training for operation CNC machines?
A. Yes, free training in our factory is available.
4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.
5. What’s the delivery time, and what’s the package?
A. Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package.
