TCK56 Factory Price China Servo Motor Linear Guidway Slant Bed CNC Lathe Machine With Living Turret
Description
TCK56 factory price China Servo Motor Linear Guidway Slant Bed CNC Lathe Machine with living turret
Specification
parameter |
TCK56 |
Max swing over bed Dia.（ mm） |
Φ560 |
Max swing over cross slide Dia.（ mm） |
Φ330 |
The distance between two centers（ mm） |
500/750 |
X axis travel（ mm） |
270 |
Z axis travel（ mm） |
500/750 |
X、Z axis feed speed（m/min） |
30/36 |
X/Z axis feed motor powr（kw） |
2.4 |
X/Z axis repeated positioning accuracy |
0.005/0.006 |
X/Z-axis positioning accuracy（ mm） |
0.01/0.015 |
Spindle speed（ rpm） |
10-3000rpm |
Spindle nose |
A2-6 |
Spindle bore Dia（ mm） |
Φ66 |
Chuck |
10” hydraulic chuck |
Main motor（kw） |
11/15KW |
No.of tool holder |
12 station |
Y axis travel (mm) |
90 |
Tool change time（s） |
0.2 |
Tools size（ mm） |
25×25 |
Boring tool size（ mm） |
Φ32 |
Tailstock travel（ mm） |
440 |
taper of center |
MT.NO.4 |
Coolant capacity（L） |
150 |
L*W*H（ mm） |
2318*1585*1770 |
Machine weight（kg） |
4500KG |
Product Description
The TCK56 factory price China Servo Motor Linear Guidway Slant Bed CNC Lathe Machine with living turret cnc bar automatic lathe product is a semi-closed slant-bed turning and milling
machine with X, Y, Z and C axes servo control. The structure and external dimensions are compact and reasonable. The spindle (C axis) is driven by a servo motor. It can realize the turning of the outer circle, the end surface and the thread of various materials, such as shafts and discs, and various surface milling and drilling in radial and axial directions, and is suitable for efficient machining of small parts.
machine with X, Y, Z and C axes servo control. The structure and external dimensions are compact and reasonable. The spindle (C axis) is driven by a servo motor. It can realize the turning of the outer circle, the end surface and the thread of various materials, such as shafts and discs, and various surface milling and drilling in radial and axial directions, and is suitable for efficient machining of small parts.
Product Feature
Standard configuration:
1) GSK980TB3 controller;
2) 8 stations electric tool post;
3) Linear guideways;
4) With manual tail stock;
5) 8'' manual chuck;
6) Cooling system;
7) Lighten system;
8) Automatic lubrication system;
Optional configuration:
1) CNC system: Siemens, Fanuc, etc.
2) Hydraulic chuck, hydraulic tailstock .
3) 8-station hydraulic turret;
4) Living tools
4 in end+4 in side
3 in end+3 in side
3 in end +2 in side
4 in end
3 in side
5)Automatic Chip conveyor;
1) GSK980TB3 controller;
2) 8 stations electric tool post;
3) Linear guideways;
4) With manual tail stock;
5) 8'' manual chuck;
6) Cooling system;
7) Lighten system;
8) Automatic lubrication system;
Optional configuration:
1) CNC system: Siemens, Fanuc, etc.
2) Hydraulic chuck, hydraulic tailstock .
3) 8-station hydraulic turret;
4) Living tools
4 in end+4 in side
3 in end+3 in side
3 in end +2 in side
4 in end
3 in side
5)Automatic Chip conveyor;

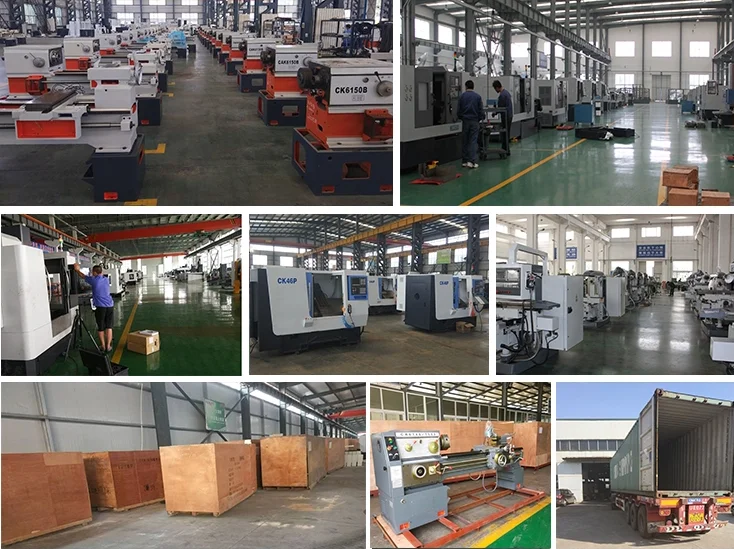

Company Profile
Shandong Lu Young Machinery Co, Ltd. is established in July 1996.We are located in shandong provice.We are one of professional cnc lathe machine, cnc milling machine and swiss lathe machine manufacturer in china.We founded our fast lathe machine factory in 1996 in tengzhou City to produce center lathe and univesal milling machine for over 20 years development,we build three factories.One is for cnc lathe production one for cnc milling production. We imported advanced production technology and R&D team from Korean in 2001 and build our third factory forswiss lathe machine production.We own about 500 wokers and 40 engineers, more than 5000 square meter .
Our engineer team have rich experiences for equipment selection and process design,we can give you professional solution based your workpieces fast and freely.We could product over 1000 sets cnc machine equipment one year. Our cnc machine tools has been exported over 40 countries and get good feedback.
♥ More than 20 years of production experience.
♥Exported more than 40 countries.
♥ More than 300 staffs in factory.
♥ CE and ISO9001 certification .
♥ 7×24 hours online service.
♥ More than 20 years of production experience.
♥Exported more than 40 countries.
♥ More than 300 staffs in factory.
♥ CE and ISO9001 certification .
♥ 7×24 hours online service.
Customer Photos
Packing & Delivery
1.Non-fumigation packaging, we use seaworthy plywood.
2. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
3.Water-proof and damp proof, water resistant film wraped all the machine.
4.Fully sheathed case,prevention of collision and keep the goods intact.
2. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
3.Water-proof and damp proof, water resistant film wraped all the machine.
4.Fully sheathed case,prevention of collision and keep the goods intact.
Our service
1. Warranty for one year.
2.Supply 7×24 hours online technology support.
3.Professional solution one by one.
4.Free training for customers online or in our factory.
5.The oversea service is available.
2.Supply 7×24 hours online technology support.
3.Professional solution one by one.
4.Free training for customers online or in our factory.
5.The oversea service is available.
FAQ
How long is your warranty period?
A: our warranty period is one year, and we will maintain the product free of charge during the warranty period.Use our machines tosupply standard parts and accessories during shipment.In the correct operation, if there are any damaged parts or accessories,wewill replace them immediately by airmail or express mail.
A: our warranty period is one year, and we will maintain the product free of charge during the warranty period.Use our machines tosupply standard parts and accessories during shipment.In the correct operation, if there are any damaged parts or accessories,wewill replace them immediately by airmail or express mail.
What kind of packing do you have?
Answer: we use a plywood cases, to ensure the packing quality durable, fully protect the safety of the goods in the cabinet, appearance is bright and clean, smooth and beautiful, durable, has low cost, big load, afraid of sun rain no moth, etc.
Answer: we use a plywood cases, to ensure the packing quality durable, fully protect the safety of the goods in the cabinet, appearance is bright and clean, smooth and beautiful, durable, has low cost, big load, afraid of sun rain no moth, etc.
How long will your delivery date be?
A: our delivery date is one month.30 days
A: our delivery date is one month.30 days
TCK56 factory price China Servo Motor Linear Guidway Slant Bed CNC Lathe Machine with living turret can be customized?
A: of course, if our product can't meet your need, tell us the model and send us the drawing, recommend suitable products to you,we can also design and produce the machine meet your requirements.
A: of course, if our product can't meet your need, tell us the model and send us the drawing, recommend suitable products to you,we can also design and produce the machine meet your requirements.
How can I contact you?
Through cell phone number and QQ, there is also email
Through cell phone number and QQ, there is also email
