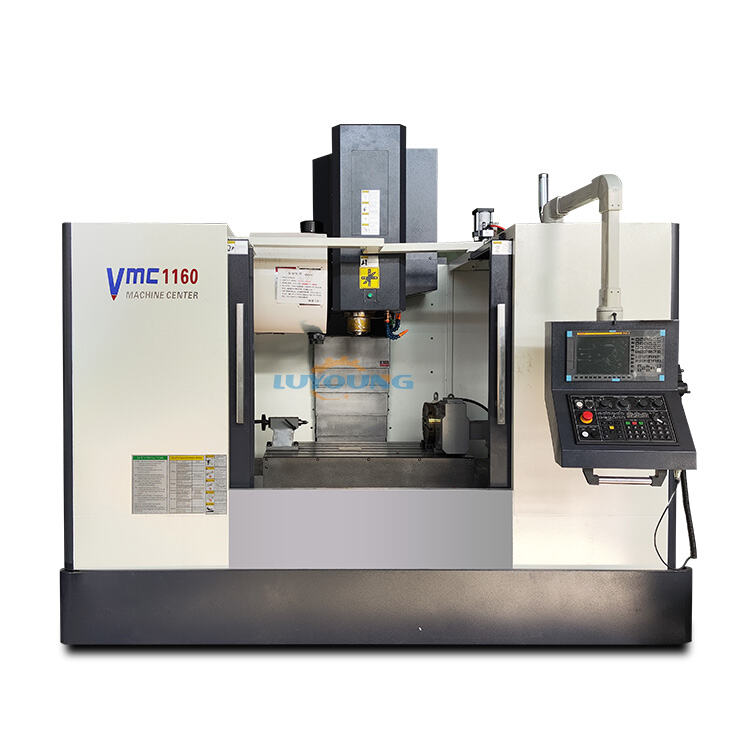

What advantages does vertical cnc milling machine have for precision machining?

Superior Precision and Dimensional Accuracy

Why micron-level tolerances are critical in modern precision machining

Vertical CNC milling machines can reach those super tight tolerances needed for things like aerospace parts and medical implants. We're talking about specs where even a 5 micrometer deviation might lead to big problems down the line. Some research from last year in the journal Precision Engineering looked at this stuff too. They found that parts needing around plus or minus 4 micrometers had nearly 37% more failures when they weren't made exactly right. Because of these strict requirements, manufacturers across different sectors keep turning to vertical CNC mills. Semiconductor makers and companies producing optical lenses rely heavily on them for their work.

How vertical spindle alignment improves accuracy and reduces deflection

When set up vertically, the machine positions the spindle axis at right angles to the worktable surface. This setup cuts down on tool deflection by around 25 to 30 percent compared with horizontal machines. The design takes advantage of gravity to help clear away chips, which means fewer mistakes from recutting material that should have been removed already. The sturdy column construction keeps things accurate too, staying within about 3 micrometers even during tough machining jobs. Many top manufacturers have noticed better results with their finished products. Some factories working with really hard steels, those rated Rockwell C55 and above, see roughly 18 percent improvements in surface finish quality when they switch to vertical configurations for these demanding materials.

Case Study: Achieving ±0.001mm tolerance in aerospace components

A 2023 aerospace project demonstrated vertical CNC milling machines maintaining ±0.001mm positional accuracy across 1,200 turbine blade slots. By combining temperature-compensated ball screws and hydrostatic guideways, operators achieved 99.7% first-pass yield on Inconel 718 parts, reducing post-processing costs by $420 per component compared to horizontal machining centers.

Advanced features: Laser probing and real-time error correction in vertical CNC milling machines

Today's manufacturing systems come equipped with laser tool setters that can measure probe accuracy down to around 1.5 microns, and they automatically adjust tool offsets right after every operation is completed. The real time error correction features work against thermal expansion issues by getting feedback from linear scales, which helps keep positional drift under control at less than 5 microns even when machines run for eight hours straight. With these improvements, factories can now machine complex parts like titanium spinal implants and precision fuel injection nozzles without constant supervision, knowing that each piece will match specifications exactly as required. Some shops report being able to produce hundreds of identical components overnight with minimal intervention needed.

Increased Productivity and Operational Efficiency

Faster Cycle Times Through Optimized Z-Axis Movement and Gravity-Assisted Chip Removal

Vertical CNC milling machines work better for deep cavity machining because they position the spindle vertically, which helps reduce tool deflection issues. Horizontal setups need complicated systems just to get chips out of the way, while vertical machines let gravity do most of the heavy lifting when it comes to clearing away debris. According to research published in the International Journal of Advanced Manufacturing Technology back in 2023, this simple advantage cuts down on cycle interruptions by around 18%. Another benefit comes from how these machines handle movement along the Z-axis. When properly optimized, there's less need for tools to keep retracting unnecessarily. This means manufacturers can cut materials continuously even when working on intricate shapes like those found in turbine blade production.

Automation Integration: Pallet Changers and High-Speed Spindles Boosting Throughput

The latest vertical CNC mills are hitting around 95-98% spindle usage thanks to those automated pallet changers that switch out workpieces in under ten seconds flat. The high speed spindles spinning at over 24 thousand RPM really make a difference when working with tough materials like hardened steel or titanium. When these systems work together properly, they cut down on all that wasted time between cuts by about a third compared to what we used to see with manual setups. For shops making complex parts like 8-axis automotive molds, this means getting everything done in one go without having to reposition the part multiple times during production.

Case Study: 30% Productivity Gain in Automotive Mold Manufacturing

One major automotive component manufacturer cut down their mold production cycle from nearly three weeks down to just over two weeks when they upgraded two vertical CNC mills with robotic tool presetters and adaptive feed controls. This change allowed continuous five side machining on those aluminum die cast molds, which really cut back on all those extra steps that used to be needed. The real kicker was implementing machine learning algorithms to fine tune cutting parameters. Not only did this increase metal removal speeds by around 22 percent, but it also made tools last longer before needing replacement, saving money in the long run for maintenance costs.

Simplified Programming and User-Friendly Operation

Intuitive CNC Controls and G-code Standardization for Faster Setup

Today's vertical CNC milling machines come with standard G-code programming and much simpler control interfaces that cut down setup mistakes around 40% when compared to older systems according to Precision Machining Journal from last year. When machines follow universal G-code standards, switching between different models becomes much easier for shop floor personnel. The tactile control panels now include visual toolpath simulations so operators can check what the machine will actually do before running any program. Standardizing these features really helps tackle the growing skills shortage in precision machining shops. Senior machinists no longer need to waste time on basic setups since newer workers can handle those routine jobs while the experts concentrate on more complicated work that requires their specialized knowledge.

Conversational Programming Enabling Rapid Operator Training (Under 48 Hours)

Vertical CNC mills equipped with conversational programming interfaces allow machine operators to set up tool paths simply by typing instructions in regular language rather than wrestling with code. According to a recent 2024 report from SME, around 78 percent of manufacturing shops saw dramatic reductions in training time for new hires when they adopted these systems, often getting people up to speed in just one or two days. What makes this technology so powerful is how it handles the math behind the scenes. When someone picks a material type, the system figures out the best feed rates and cutting depths automatically. This means even someone who's never touched a CNC machine before can walk into a shop and start making parts that meet specifications right from day one without needing constant supervision.

Trend: Cloud-Based CAM Systems Enhancing Programming Simplicity for Vertical CNC Milling Machines

Top manufacturers are starting to connect their vertical CNC milling machines to cloud based CAM platforms these days. This setup lets engineers program from anywhere and work together instantly across different locations. The cool part? These systems actually pull in recommended cutting settings directly from manufacturers via those digital twin models. For really complicated mold and die jobs, this cuts down on programming time quite a bit - around two thirds according to industry reports. And when software gets updated, every machine gets the newest tools and safety rules automatically. No more headaches dealing with old versions conflicting with new ones like we used to see back in the days of working offline.

Flexible Workholding and Multi-Sided Machining Capabilities

Vertical CNC milling machines excel in handling complex geometries through gravity-stabilized clamping, which enhances rigidity by using natural gravitational forces to secure workpieces. This method reduces vibration-induced inaccuracies by 18–22% compared to traditional horizontal clamping (Advanced Manufacturing Journal 2023), providing unrestricted tool access for intricate contours.

Enabling Complex Geometries with Modular Fixturing and 5-Axis Retrofits

Modular fixturing systems allow rapid reconfiguration for multi-sided machining, slashing setup times by 35–50% in high-mix production. When paired with 5-axis retrofits, vertical mills achieve under 0.005mm positional repeatability for features like organic curves and angled ports—capabilities previously limited to specialized horizontal machines.

Case Study: Dental Implant Fixture Production Using Advanced Vertical CNC Milling Setups

A leading medical device manufacturer achieved ±0.002mm positional accuracy on titanium dental implant fixtures using vertical CNC milling machines with hydrostatic spindles and kinematic tool changers. This eliminated secondary finishing steps, reducing per-unit costs by 27% while maintaining 99.8% first-pass yield across 12,000 units.

Cost-Effectiveness and Low Maintenance Requirements

Lower total cost of ownership due to simpler mechanical design

Vertical CNC milling machines typically have about 35 percent fewer moving parts when compared to their horizontal versions, which cuts down on what companies spend upfront for equipment. The way these vertical machines align their axes with gravity makes the whole structure simpler. No need for all those complicated gears and hydraulic systems that horizontal models rely on. Because of this simpler setup, they actually use around 20% less power than traditional horizontal mills. Plus, getting them installed is much quicker since there's no requirement for special foundation work. Many shops find this particularly valuable when trying to get production lines running efficiently without major infrastructure investments.

Reduced downtime: Fewer moving parts and easier maintenance in vertical CNC milling machines

Vertical CNC mills have just three main linear axes compared to the five found in those fancy multi-plane machines, which means they tend to break down about 40% less often based on some recent 2023 studies looking at machine reliability. Maintenance folks love working on these because everything important like the spindle and coolant system is right at ground level where it can be reached easily, cutting down on daily maintenance tasks by somewhere between 15 and 25 minutes each shift. And let's not forget about that open frame design either. It keeps chips from building up around all the moving parts that really matter, something manufacturers point to when explaining why these machines stay running so reliably most of the time. We're talking about keeping operations going at around 98.5% availability even during those long production runs that stretch past 500 hours straight.

Debunking the myth: Are vertical machines less capable than horizontal ones?

Today's vertical CNC milling machines are catching up fast, hitting around 92% of what horizontal mills can do when it comes to removing material from aluminum. Plus they leave behind better surface finishes too, with measurements showing Ra values at 0.4 microns compared to 0.6 for horizontal units. The newer generation of these machines isn't just good with soft metals either. Some advanced models can actually work on tough titanium alloys rated up to 45 HRC thanks to their special ceramic bearings and super high speed spindles spinning at 20,000 RPM. These features used to be something only found in horizontal setups. Looking at recent surveys from 2024, about eight out of ten precision machining jobs found that vertical machines gave them the same level of accuracy but saved between 18% and 22% on running costs. Makes sense why so many shops are making the switch nowadays.

FAQ

What are the main advantages of using vertical CNC milling machines?

Vertical CNC milling machines offer superior precision, faster cycle times through optimized Z-axis movement, integration of automation, simplified programming, and cost-effective operation with low maintenance requirements. They excel in handling complex geometries and provide flexibility in multi-sided machining capabilities.

How do vertical CNC milling machines improve accuracy over horizontal models?

Vertical CNC milling machines improve accuracy by positioning the spindle axis at right angles to the worktable surface, reducing tool deflection by utilizing gravity, and employing advanced features like laser probing and real-time error correction.

Are vertical CNC milling machines suitable for high-precision tasks?

Yes, vertical CNC milling machines are suitable for high-precision tasks, evidenced by case studies and research showing their ability to achieve tight tolerances, minimize post-processing costs, and maintain high first-pass yield rates, as seen in aerospace and dental implant manufacturing.

Is the setup for vertical CNC milling machines more user-friendly?

Yes, the setup for vertical CNC milling machines is more user-friendly due to intuitive CNC controls, standardized G-code programming, and conversational programming interfaces that facilitate rapid operator training, making it easier for less experienced workers to efficiently operate these machines.
