First Article Inspection (FAI) to Validate Production Readiness
First Article Inspection, or FAI for short, acts as that important checkpoint right before starting full production on those CNC turning lathe machines. What happens during this inspection? Well, basically they check out the very first piece made against all those engineering specs. There are three main things they look at: checking dimensions on key parts like bore sizes and thread shapes using those fancy coordinate measuring machines; running tests to see how it performs under actual working conditions; and going through all the paperwork to make sure everything matches up. When manufacturers compare what was actually built to the original designs early on, they catch problems with tool settings or materials that might mess up quality later. According to industry reports, companies that do thorough FAI work cut down defects after shipping by about 32%, which saves them from having to recall whole batches of products. Whenever there's a big change in machining operations, say when switching to different cutting tools or changing how parts are held in place, repeating the FAI makes sense to keep things compliant as components move further along the production line.
Final Visual, Functional, and Documentation Sign-Off Checks

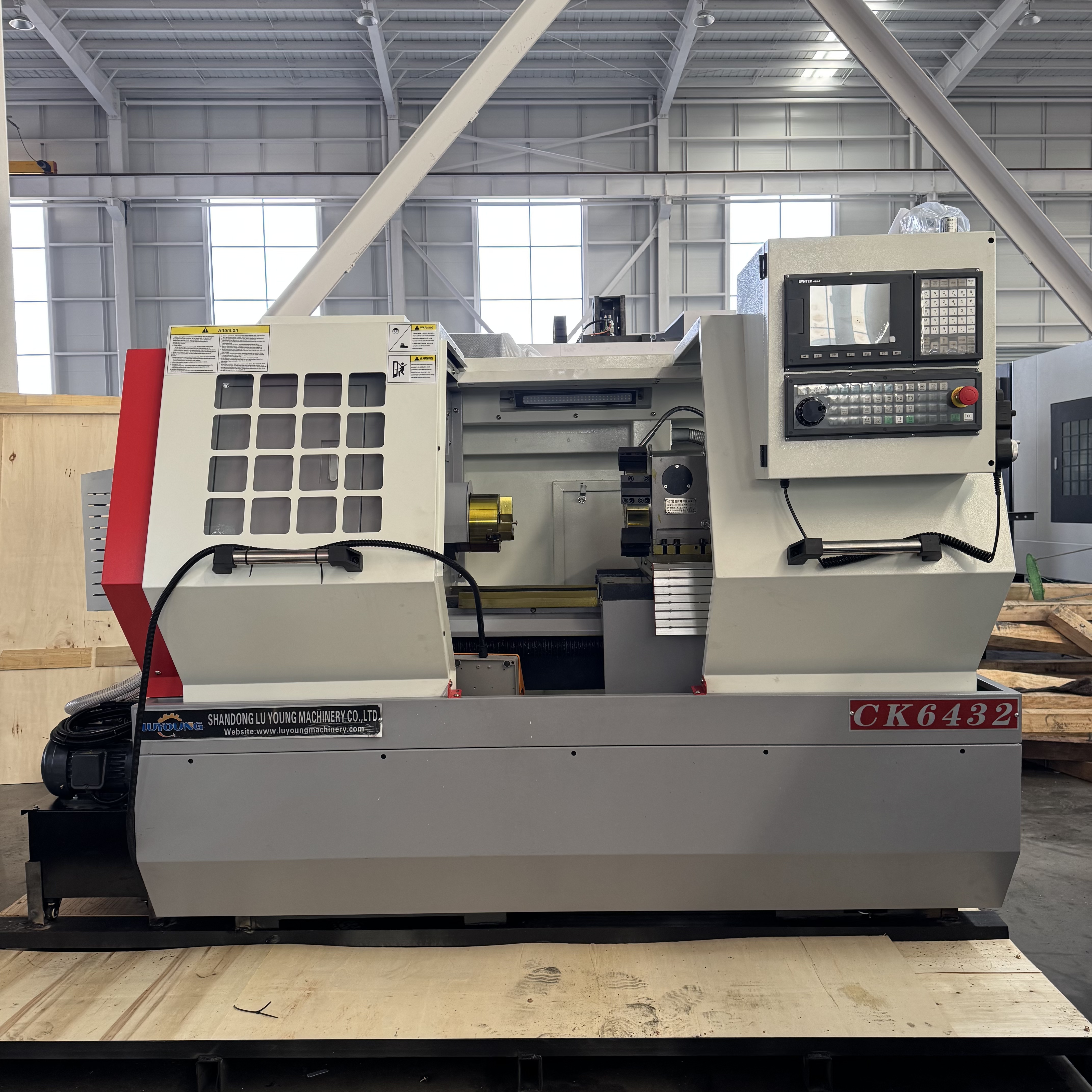

Prior to shipment, CNC turning lathe machines undergo tripartite verification to guarantee operational integrity:
- Visual Inspection: Technicians examine surfaces for scratches, dents, or coating inconsistencies using calibrated optical comparators, rejecting units with imperfections exceeding 0.5mm depth
- Functional Testing: Machines execute standardized test routines under maximum load conditions while monitoring spindle runout (±0.01mm tolerance) and thermal drift stability
- Documentation Audit: Quality teams verify calibration certificates for measurement tools, material certifications, and complete inspection records against ISO 9001 traceability requirements
This multi-layered sign-off protocol ensures every machine meets both geometric specifications and performance benchmarks before customer delivery. Manufacturers maintaining this comprehensive approach demonstrate 40% fewer warranty claims, per machining industry analyses.
Dimensional Accuracy and Geometric Verification
Precision machining demands rigorous verification of dimensional tolerances and geometric characteristics.
GD&T Compliance: Roundness, Concentricity, and Straightness Testing
The rules of Geometric Dimensioning and Tolerancing (GD&T) play a big role in controlling shape qualities during CNC turning work. When checking roundness, manufacturers make sure that parts like machine shafts stay within tight tolerances, usually keeping radial variation under ±0.005 mm across their entire surface. For concentricity checks, engineers look at whether different sections of a part line up properly along the same central axis. Straightness tests often involve lasers that can spot even tiny bends or curves, typically looking for anything over 5 microns per meter length. These quality control steps really matter for precision assemblies where components need to fit together exactly right. Factories that follow GD&T guidelines tend to see fewer rejects overall. According to data from Precision Machining Journal last year, shops implementing proper GD&T practices reported around a 32% reduction in parts that didn't meet specifications.
Laser Interferometry and Ball Bar Calibration for Measurement System Integrity
Advanced metrology systems validate machine tool integrity through:
- Laser interferometry, mapping linear positioning errors across axes with 0.1 μm resolution
- Ball bar testing, quantifying circularity deviations during contouring motions
- Thermal compensation algorithms counteracting dimensional drift from ambient fluctuations
These calibration methods detect geometric inaccuracies—including squareness errors and angular deviations—before production. Regular verification reduces scrap rates by 41% by maintaining measurement system capability indices (Cpk) above 1.67, per ASME B5.54-2022.
Functional Performance Validation Under Realistic Conditions
Spindle Runout, Toolpath Stability, and Thermal Drift Assessment During Load Testing
Rigorous functional validation under production-mirrored conditions determines whether a CNC turning lathe machine sustains precision under stress. Extended load testing—machining hardened alloys at maximum feed rates—exposes critical performance indicators:
- Spindle runout, measured via non-contact probes, must stay ≤ 0.002 mm during peak torque, as excess vibration accelerates tool wear
- Toolpath stability, verified by continuous laser tracking, requires positional accuracy within ±5 microns during complex contouring
- Thermal drift compensation is validated by running 8-hour cycles while monitoring axis displacement with infrared sensors; acceptable deviation remains under 10 microns despite 15°C ambient shifts
Machining aerospace-grade titanium under these parameters proves operational reliability, where inconsistent chip loads induce mechanical stresses absent in static calibration. Such testing bridges lab specifications and real-world throughput demands, ensuring sustained dimensional accuracy across production batches.
Regulatory and Industry Standard Compliance
ISO 230-2/-6 Positioning Accuracy, Repeatability, and Geometric Error Mapping
Checking geometric tolerances on CNC turning lathes means following those ISO 230-2 and 230-6 standards pretty closely. The specs call for thorough tests of how accurate the machine positions itself (within about +/- 0.005 mm) and whether it repeats measurements consistently. Laser interferometry does most of this work while thermal drift compensation keeps things stable when machines run for long periods. When companies map out these geometric errors, they spot where the machine isn't performing right along its main axes. Studies in dimensional metrology show that failing to follow these guidelines can boost scrap rates by around 18%. For manufacturers wanting their equipment certified, keeping detailed records of error compensation across both straight line movements and rotational axes is absolutely essential.
ISO 9001 Integration in CNC Turning Lathe Machine Quality Management
Implementing ISO 9001 frameworks establishes systematic quality control for CNC turning lathe machine production. This includes standardized documentation of inspection protocols, non-conformance tracking, and corrective action workflows. Continuous process audits reduce variability in critical tolerances by 23% while ensuring end-to-end traceability across the supply chain through digital record-keeping systems.
FAQ
- What is First Article Inspection (FAI)?
FAI is a comprehensive inspection of the first manufactured piece against engineering specifications to ensure production readiness.
- Why is FAI important in the CNC industry?
FAI helps identify potential issues with tool settings or materials early on, reducing defects and avoiding costly product recalls later in production.
- What are the three main areas FAI focuses on?
FAI focuses on checking dimensions of key parts, testing performance under working conditions, and ensuring paperwork matches engineering specifications.
- How does FAI help in reducing defects?
By catching issues early during the initial inspection, FAI reduces defects post-shipping by about 32% according to industry studies.
- When should FAI be repeated?
Repeating FAI is advisable when there are significant changes in machining operations like changing cutting tools or parts holding methodologies.
