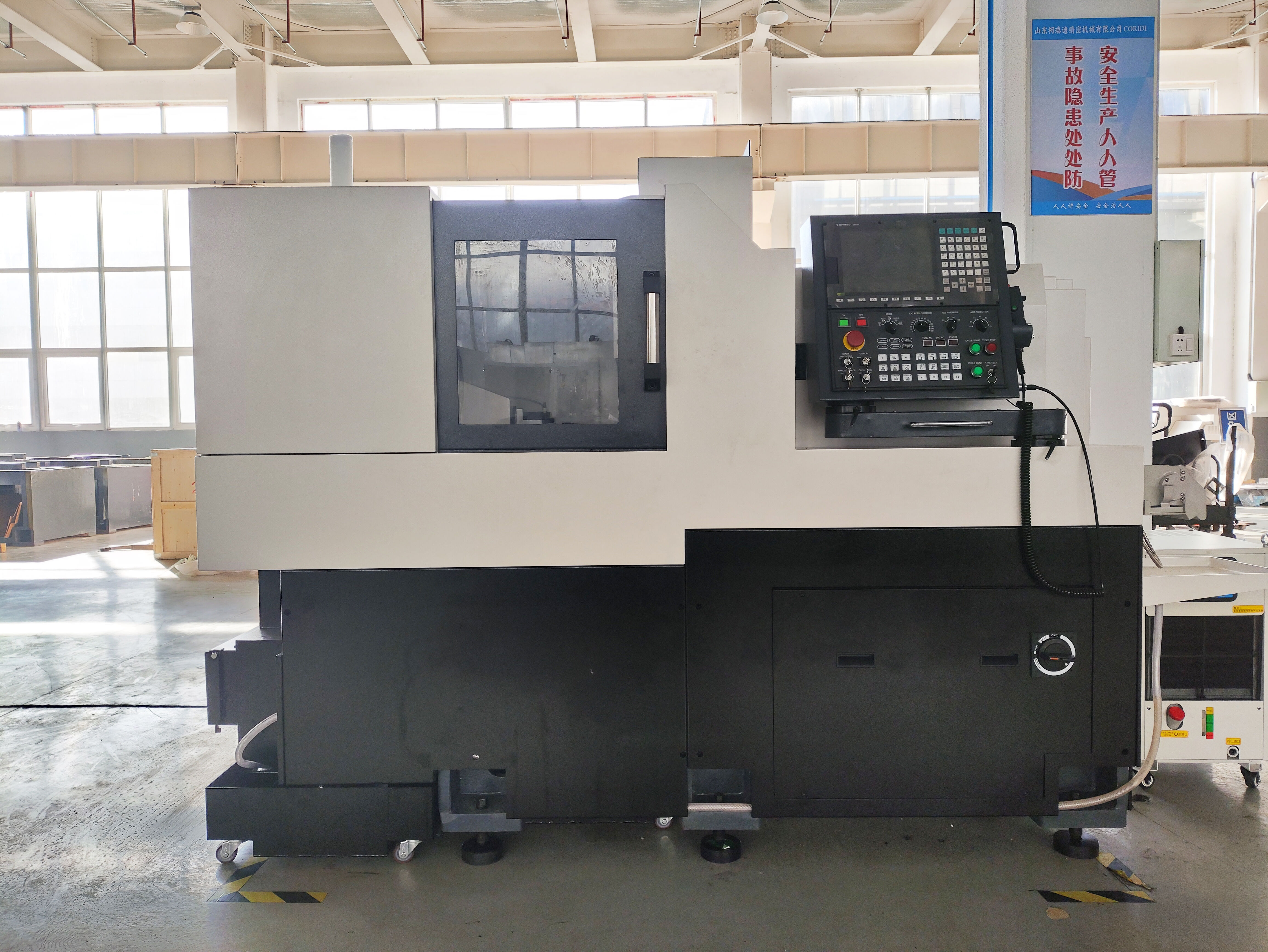

What applications suit Swiss type CNC lathes best?

Medical Device Manufacturing: High-Volume, Life-Critical Micro-Components

Why bone screws, dental implants, and cannulated pins under 6 mm rely on Swiss type CNC lathe machines

When it comes to tiny medical devices like bone screws, dental implants, and those cannulated pins below 6mm, getting the manufacturing right down to the micron level matters a lot for things like how well they work inside the body, their ability to withstand repeated stress, and whether they can actually support the loads they're supposed to carry. That's where Swiss type CNC lathes come into play with their special sliding headstock design. These machines hold really thin metal bars, sometimes as narrow as half a millimeter, right at the point where cutting happens. This setup cuts down on wobbling and vibrations that would otherwise create surface flaws in materials like Ti-6Al-4V titanium alloy. Maintaining this kind of stability isn't just nice to have either it's absolutely necessary when these parts need to keep performing reliably even after years of constant movement within the human body. Research published in journals shows older machining techniques actually result in about 12 percent more particles getting into these miniature components compared to what happens with Swiss lathes. And because these machines come equipped with built-in systems for removing chips and sealing off coolants, they naturally meet those strict ISO 13485 cleanliness requirements without extra effort.

How simultaneous front/back spindle operation ensures zero-handling integrity and ISO 2768-fine tolerances

Running both spindles at once lets manufacturers complete all necessary work on components - turning, threading, grooving, drilling everything in one go through the chuck. The main spindle takes care of the basic shaping tasks while the back spindle tackles those tricky secondary jobs like making internal threads or creating hollow channels inside parts. This setup cuts out the need for picking up parts and moving them around between different machines. We call it the 'no touch' approach because it keeps everything aligned properly throughout the whole process. For surgical pins that need very tight concentricity specs around 5 microns, this method works great. When producing spinal fixation devices, factories report getting close to perfect first time success rates around 99.8% and they maintain those super tight ISO 2768 tolerances down to 0.05 mm even when running thousands of units through the system day after day.

Aerospace Fasteners and Long-Slender Components: Stability in Superalloys

The role of guide bushing kinematics in machining Inconel 718 and Ti-6Al-4V at <0.15 mm bar stock diameters

Working with aerospace superalloys such as Inconel 718 and Ti-6Al-4V becomes extremely challenging when machining parts smaller than 0.15 mm in diameter. These materials are known for their incredible strength, often surpassing 180 ksi in tensile strength, and they can withstand temperatures approaching 1,300 degrees Fahrenheit without breaking down. Standard lathes simply aren't up to the task because the tools tend to deflect during machining of such thin workpieces. That's where Swiss type CNC lathes come into play. They incorporate special guide bushings that support the material just half a millimeter away from where the actual cutting happens. This setup dramatically reduces vibration and prevents the kind of bending that plagues conventional machines. The result is much better control over the machining process.

• Surface finishes under 8 Ra µin
• Dimensional repeatability within ±2 µm
• 40% lower scrap rates for titanium fasteners

The closed-loop support system also dynamically compensates for thermal expansion during high-speed Inconel 718 machining, while simultaneous front/rear operations reduce handling stress on long-thin actuator pins—critical when working with Ti-6Al-4V’s low thermal conductivity, where localized heat buildup risks microstructural damage.

Precision Watchmaking and Micro-Mechanisms: Sub-Micron Repeatability Standard

Escapement wheels, balance staffs, and hairsprings — where Swiss type CNC lathe machine accuracy defines industry benchmarks

Positional accuracy matters a lot when it comes to timekeeping in high end watchmaking. That's why Swiss type CNC lathes are so important they can achieve sub micron repeatability around plus or minus 0.5 microns. These machines handle really tiny parts like escapement wheels with tooth profiles about 0.2 mm thick, balance staffs needing concentricity under 1 micron, and hairsprings that are actually thinner than human hair strands. The guide bushing system keeps everything stable while cutting happens, which stops vibrations from messing up the geometry or damaging surfaces. When both front and rear spindles work together, it means the entire pallet fork gets machined in just one setup without having to move things around. This maintains those fine ISO 2768 tolerances even when producing batches of over 10 thousand units. Thermal compensation built into these machines helps maintain consistent dimensions across different materials like gold and platinum alloys. For anyone serious about making precision micro mechanisms that keep accurate time, Swiss type lathes remain the go to solution in the industry.

Electronics Connectors and Multi-Operation Microparts: Live Tooling Efficiency

Single-setup turning, milling, drilling, and threading for RF coaxial pins and miniature electrical contacts

When it comes to tiny electronic connectors like RF coaxial pins and those shiny gold plated contacts, getting the geometry right at the micron level matters a lot. Surface finishes need to be spot on too, around Ra 0.2 microns max, otherwise signals get messed up and connections fail over time. The Swiss style CNC lathes we use have live tools built in, so they can do all sorts of operations turning, milling, drilling holes across from each other, even threading everything in one go without having to move parts around between machines. This setup keeps things aligned within about 5 microns and maintains good conductivity throughout big batches of production, sometimes hitting 50k pieces a month. Another neat trick is running both front and back spindles together, which saves roughly 40% compared to old fashioned methods that required multiple setups. Plus, our machines come with sealed coolant systems and proper chip handling that help maintain those tight ISO 2768 tolerances without letting processes wander off track during long runs.

FAQ

Why are Swiss type CNC lathes preferred for manufacturing bone screws and dental implants?

Swiss type CNC lathes are preferred because they can handle very thin metal bars with high precision, reducing wobbling and vibrations. This precision ensures the components meet the necessary stress and load requirements within the human body while adhering to strict cleanliness standards like ISO 13485.

How do these machines maintain zero-handling integrity?

The simultaneous operation of front and back spindles in these machines allows manufacturers to complete all machining processes without having to move or handle the parts, ensuring high integrity and tight tolerances like ISO 2768-fine.

Why are guide bushings important in machining aerospace components?

Guide bushings support the thin material right next to the cutting point, minimizing vibrations and bending during processing. This is crucial when machining strong and temperature-resistant aerospace materials like Inconel 718 and Ti-6Al-4V to achieve fine finishes and dimensional accuracy.

What makes Swiss type CNC lathes suitable for precision watchmaking?

These lathes offer sub-micron repeatability and can handle the tiny, intricate components involved in watchmaking, such as escapement wheels and hairsprings. The precision and stability they provide are essential for maintaining timekeeping accuracy.

Are these machines effective for producing electronics connectors?

Yes, Swiss type CNC lathes are ideal for electronics connectors due to their live tooling capabilities, which allow them to perform multiple operations in a single setup. This ensures tight tolerances and effective conductivity needed for high-volume production of components like RF coaxial pins.
