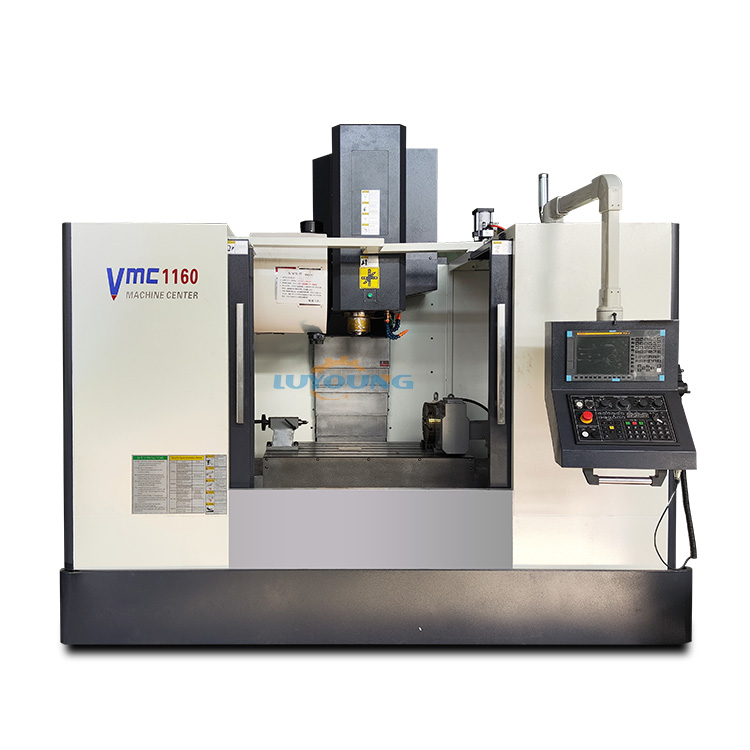

Which vertical CNC milling machines suit precision mold making?

Core Mechanical Requirements of a Vertical CNC Milling Machine for Mold Accuracy

Rigidity and Thermal Stability in Ultra-High-Precision Vertical Machining Centers

For precision mold making work, vertical CNC milling machines need solid structural rigidity to handle the job requirements. Machines built with heavy cast iron bases and those featuring reinforced columns designed for thermal symmetry help soak up vibrations when cutting at high speeds. This setup prevents that annoying micro chatter effect which can ruin surface finishes down to around 0.4 microns Ra. Thermal stability matters just as much though. Most modern machines come equipped with liquid cooling systems and heat dissipation designs that fight against spindle thermal expansion. These features keep dimensions consistent within about plus or minus 0.001 mm throughout an entire 8 hour shift. When manufacturers neglect both mechanical stiffness and proper thermal management, even small temperature changes in the workshop environment exceeding 2 degrees Celsius can cause noticeable positioning drift problems. And these tiny shifts end up messing with cavity tolerances that are absolutely essential for injection molds to function correctly.

Sub-Micron Positioning Accuracy and Repeatability for Complex Mold Cavities

Getting micron level contouring right requires tight integration between motion control systems and their feedback mechanisms. Glass scale linear encoders provide position checks in real time down to 0.1 microns, and those pre tensioned ball screws make sure there's no backlash when working on detailed finishes. When combined, these technologies maintain repeatability within plus or minus 0.0005 mm across multiple cavity mold setups. As a result, around 90 percent of core and cavity parts can skip manual polishing altogether. The increased precision also means lead times shrink by about 15 to 30 percent according to industry standards. What's more important is that it meets strict tolerances of plus or minus 0.002 mm even after over 10,000 machining cycles. This matters greatly for high spec applications like aerospace components and medical grade molds which must comply with AS9100 and ISO 13485 regulations.

Critical Process-Specific Features in a Vertical CNC Milling Machine for Mold Workflow Efficiency

High-Speed Automatic Tool Changers vs. Thermal Drift Mitigation in Multi-Pass Machining

Automatic tool changers running at high speeds can reduce non-cutting time anywhere from 15 to 25 percent during those complex multi-pass mold jobs. But there's a catch: when tools index quickly and spindles accelerate fast, they generate quite a bit of heat. The best vertical CNC mills tackle this problem with liquid cooled spindles and castings designed to resist temperature changes, which keeps the machine accurate to within plus or minus 2 microns even after hours of work. For shops dealing with hardened steel parts or tough nickel based alloys where GD&T specifications are razor thin, maintaining cavity geometry becomes absolutely critical between all those constant tool changes.

In-Process Probing and Real-Time Compensation for ±0.002 mm Tolerance Compliance

Modern in-process probing systems can spot tiny geometry differences down to 0.8 microns during different machining stages. These systems send their findings straight to real time compensation programs that make adjustments automatically. What happens next? The closed loop system changes tool paths while the machine is still running, hitting tight ±0.002 mm tolerances even on complicated freeform shapes. Factory floor reports show manufacturers cutting scrap rates by around 30% when making precision injection molds. This matters most for things like conformal cooling channels and those tricky thin wall cavities where fixing problems after machining would be way too expensive to justify economically.

Validated Performance: Industry-Leading Vertical CNC Milling Machines in High-Volume Mold Production

Case Study: Makino A500Z — 37% Reduction in EDM Pre-Machining Time for Automotive Die Sets

The Makino A500Z exemplifies how thermally stable, rigid vertical CNC milling machines transform high-volume mold production. In a documented automotive die-set application, it delivered a 37% reduction in EDM pre-machining time—driven by three interdependent capabilities:

• High-torque spindles (90 ft-lb at 2k RPM), sustaining aggressive yet stable material removal rates during roughing of P20 and H13 tool steels
• Real-time thermal and geometric compensation, correcting positional deviations within ±0.002 mm without operator intervention
• 50 m/minute rapid traverse speeds, minimizing non-cutting movement between intricate cavity features

These gains contributed to a 22% reduction in per-unit costs for transmission housing dies—without sacrificing surface integrity (<0.4 µm Ra) or long-term dimensional fidelity. Such outcomes underscore why leading mold shops prioritize machines engineered not just for peak performance, but for sustained, repeatable accuracy under production conditions.

FAQ

What is the role of mechanical rigidity in vertical CNC milling machines?

Mechanical rigidity ensures that the machine can handle high-speed operations without causing micro chatter effects, which can negatively impact surface finishes.

How does thermal stability impact mold accuracy?

Thermal stability prevents spindle thermal expansion, maintaining consistent dimensions throughout operations, crucial for maintaining cavity tolerances essential for injection molds.

What technologies aid in achieving sub-micron positioning accuracy?

Technologies like glass scale linear encoders and pre-tensioned ball screws help achieve sub-micron positioning accuracy by providing real-time position checks and eliminating backlash.

How do automatic tool changers contribute to efficiency?

High-speed automatic tool changers reduce non-cutting time and increase efficiency, but they must be complemented by thermal management systems to maintain accuracy.

What is real-time compensation in the context of CNC molds?

Real-time compensation adjusts tool paths automatically to maintain tight tolerances, even during ongoing operations, reducing scrap rates significantly.
