High Technical M1432x1000mm Distance Between Two Centers Cylindrical Grinding Machines

Description

Product Overview

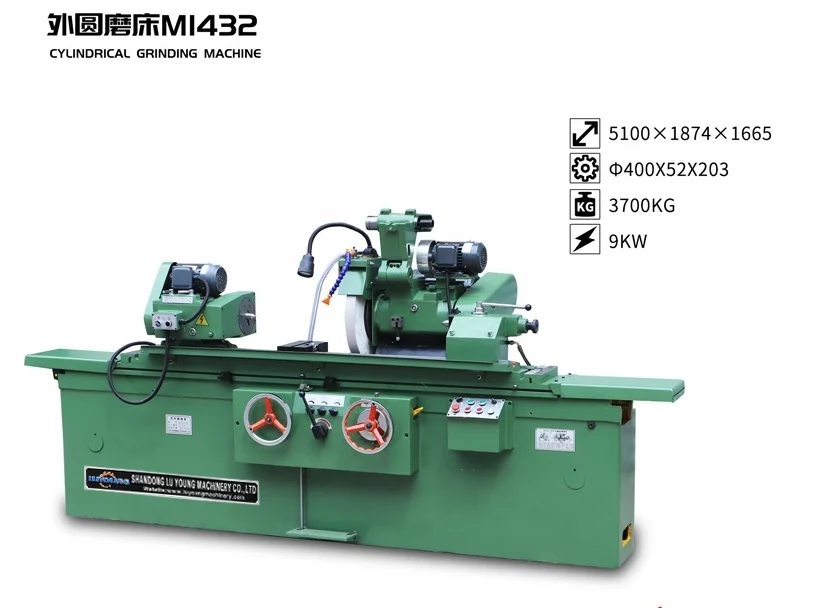

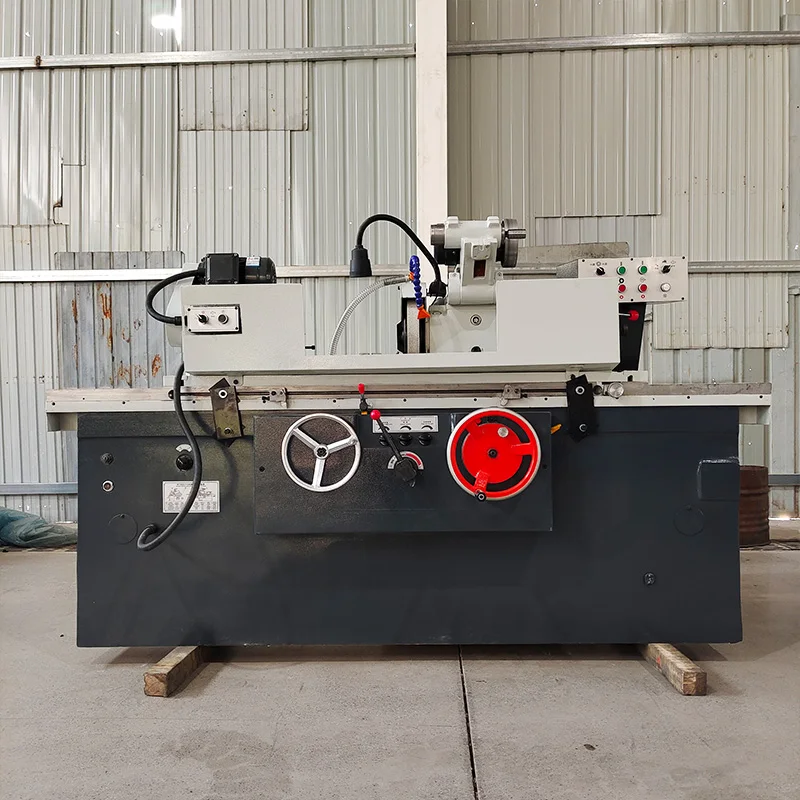

High techinical M1432x1000mm distance between two centers cylindrical grinding machines

The cylindrical grinder removes excess metal material by having a rotating grinding wheel come into contact with the workpiece,
thereby forming the desired shape and dimensions. The workpiece is clamped between the headstock and tailstock, while the grinding
wheel rotates around its central axis for efficient grinding.

FEATURES AT A GLANCE

Max.Dia ground:320mm

Swivel angle CW/CCW: 3/6

Max.load weight between centers:150mm

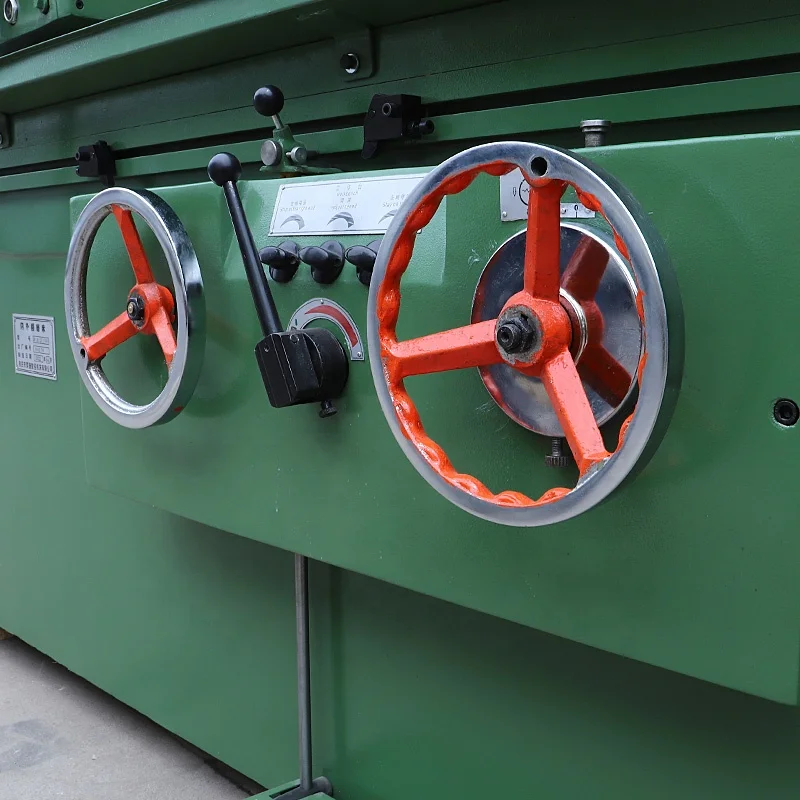

Manual Grinding: Longitudinal Grinding, Plunge Grinding.

Basic Structure
A cylindrical grinder mainly consists of the following components: * Headstock: Used to fix and drive the workpiece, ensuring stability during the grinding process.
* Tailstock: Provides additional support, typically used for processing long workpieces.
* Wheelhead: Houses the grinding wheel and is responsible for performing the actual grinding operation.

High Technical M1432x1000mm Distance Between Two Centers Cylindrical Grinding Machines manufacture

PRODUCT SPECIFICATIONS

SPECIFICATIONS			Units	M1432x1000	M1432x1500
Capacity	Max.Dia ground	mm	320	320
		Max.length ground	mm	1000	1500
		Min.Dia ground	mm	10	10
		Max.load weight between centers	kg	150	150
		Max.ground hold dia(ID)	mm	125	125
		Max. grinding depth	mm	160	160
		Center Height	mm	165	165
		Max. length between centers	mm	1000	1500

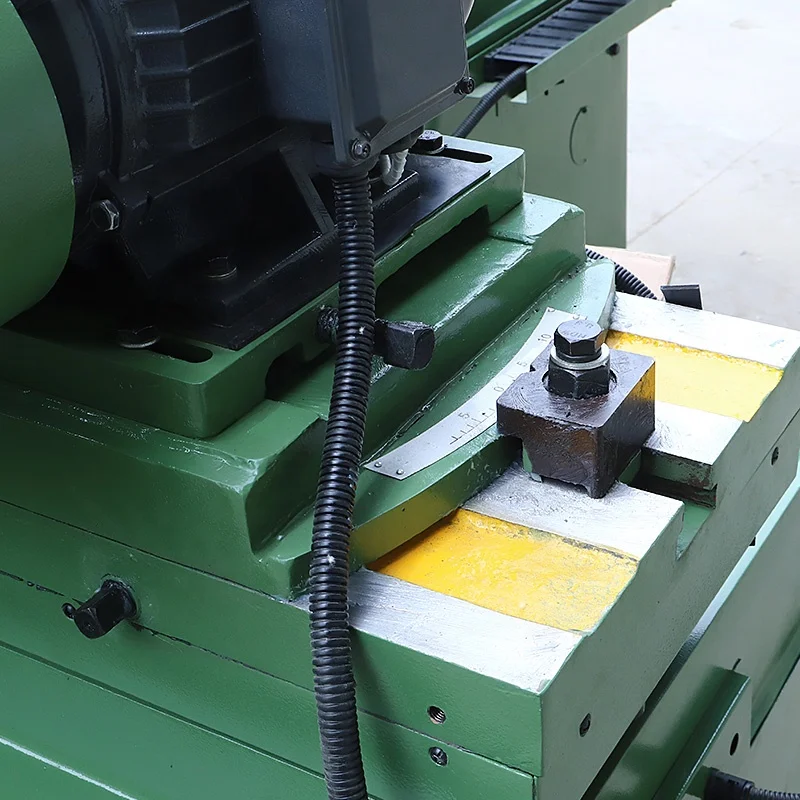

Worktable	Swivel angle CW/CCW	°	3/6	3/6
		Infinitely variable hydraulic speed control	m/min	0.1-3	0.1-3
		Max.travel	mm	1010	1510
		Handwheel /revolution	mm	9.6	9.6
Workhead	Work head swiveling angle	°	CCW:60° ; CW:30°	CCW:60° ; CW:30°
		Spindle taper		Morse No.4	Morse No.4
		Speed range	rpm	30,48,75,118,190,300	30,48,75,118,190,300
Tailstock	Center travel/Manual	mm	≧23	≧23
Tailstock		Center travel/Hydraulic	mm	≧15	≧15
Internal grinding tool	Internal grinding spindle speed	r/min	14000	14000
Internal grinding tool		Spindle taper		1:5	1:5

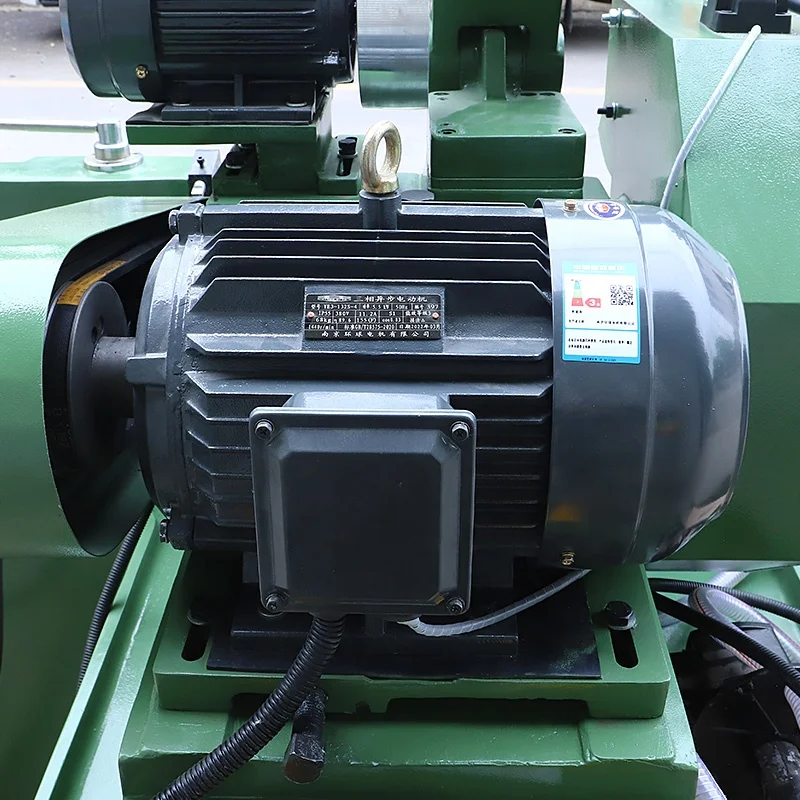

Motor	Compulsory lubrication motor	Kw	1.5	1.5
			Coolant motor		0.15	0.15
			Grinding wheel motor		5.5	5.5
			Wotkhead motor		0.75	0.75
			Internal grinding motor		1.1	1.1
Wheel head	Grinding wheel size (D x W x B)	mm	50052203	50052203
		Revolution angle(CW/CCW)	°	10/5	10/5
		Spindle speed	rpm	1316	1316
		Fast travel speed	r/min	≧30	≧30
		Lateral manual stroke	mm	65	65
		Handwheel feed/revolution	mm	1	1
		Min feed	mm	0.002	0.002
		Wheelhead total feed travel	mm	150	150
General Specification	Machine size	mm	3400x1800x1800	430016501700
General Specification		Machine weight	kg	3700	4200
